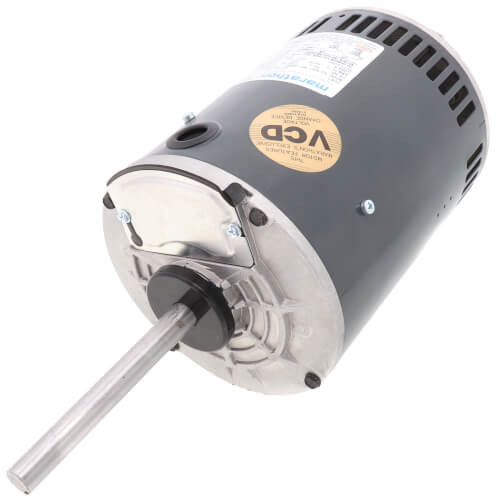

Marathon X502 Electric Motor 1 HP 200-230/460V 1140RPM

Regal Rexnord - Marathon

$421.95

In Stock — 10+ available

Write a Review
SKU:
X502
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $33.85 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Programmed Motor
Subcategory:
Three-Phase AC Motor
Application:
Commercial/Industrial
System Type:
HVAC Blower, Fan, Conveyor, Material Handling
Installation Type:
OEM Replacement
Voltage:
200-230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Horsepower:
1 HP
RPM:
1140 RPM
Speeds:
1
Frame Size:
56Y Frame
Fuel Type:
Electric
Material:
Rolled Steel Frame with Aluminum Flange
Mounting Type:
Round Belly Band
Motor Type:
Three Phase
Power (kW):
0.75 kW
Service Factor:
1.0
KVA Code:
K
Power Factor:
60.7%
Duty:
Continuous
Ambient Temperature:
70°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6203, opposite end 6203
Shaft Type:
Single Special Extension
Overall Length:
15 1/16"
Frame Length:
7 9/16"
Mounting Orientation:
Horizontal
Assembly Position:
F1 Only
IP Rating:
IP10
Certifications:
UL Recognized, CSA
Country of Origin:
Mexico
UPC:
722856038425
Lifecycle Status:
Active
Regal Rexnord Marathon X502 industrial-duty motor rated 1 HP at 200-230/460V, three-phase, 1140 RPM. Compact rolled steel frame with aluminum flange for corrosion resistance. Suitable for HVAC blowers, fans, conveyors, and material handling applications.
