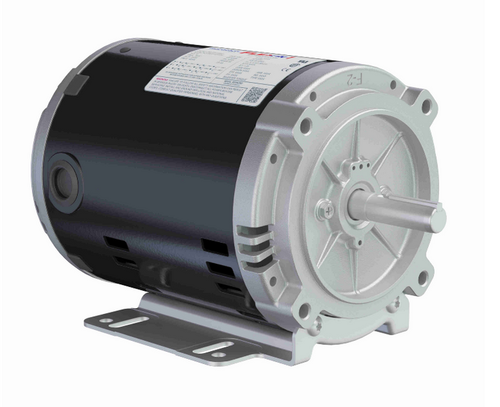

Marathon FX32BK003 FLEX-IN-1™ industrial electric motor, 1.5 HP at 1800 RPM, rated 230/460V 3-phase. TEFC enclosure with 56HC frame and repositionable mounting base for flexible installation. Inverter duty rated (10:1 CT) with Class F insulation and double-sealed ball bearings. Replaces hundreds of discontinued 56-frame motors.
Marathon FX32BK003 Electric Motor 1.5 HP 230/460V
Regal Rexnord - Marathon
$371.95
In Stock — 10+ available
Write a Review
Write a Review
Regal Rexnord - Marathon
Marathon FX32BK003 Electric Motor 1.5 HP 230/460V
- SKU:
- FX32BK003
Specifications
- Product Type:
- Electric Motor
- Subcategory:
- Three-Phase General Purpose Motor
- Application:
- Industrial
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 4.4/2.2 A
- Horsepower:
- 1.5 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Frame Size:
- 56HC Frame
- Mounting Type:
- Repositionable Bolt-On Base
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Power (kW):
- 1.1 kW
- Service Factor:
- 1.15
- KVA Code:
- M
- NEMA Design:
- B
- Power Factor:
- 75%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Line Or Inverter
- Inverter Duty:
- Constant 2:1
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Nema 56
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1 F2/F3 Capable
- IP Rating:
- IP22
- Country of Origin:
- Mexico
- UPC:
- 691720115091
- Lifecycle Status:
- Active
- Motor Type:
- Three Phase
