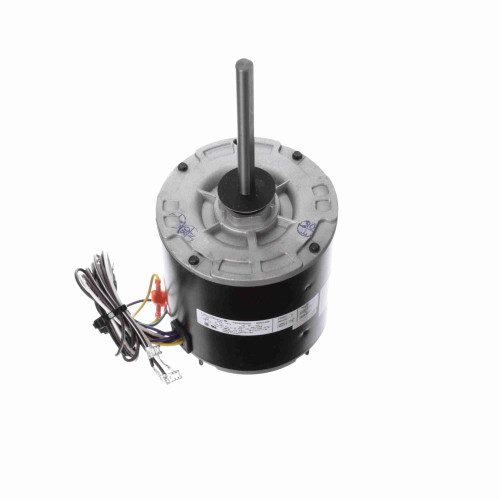

Century EM3738F Condenser Fan Motor 1/2 HP 460V

Regal Rexnord - Century Motors

$141.95

In Stock — 10+ available

Write a Review
SKU:
EM3738F
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $27.80 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Condenser Fan Motor
Subcategory:
Direct Drive
Application:
Residential/Commercial
System Type:
Split System, Package Unit, Condenser
Installation Type:
OEM Replacement
Voltage:
460V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
4.3A
Horsepower:
1/2 HP
RPM:
1075 RPM
Speeds:
1
MFD:
10 MFD
Frame Size:
48Y Frame
Mounting Type:
Direct Drive
Motor Type:
PSC
Power (kW):
0.37 kW
Service Factor:
1.0
Duty:
Air Over
Ambient Temperature:
70°C
Starting Method:
Across The Line
Run Capacitor:
10 MFD 370V
Bearings:
Ball / Ball
Shaft Type:
Flat
Overall Length:
12.17"
Frame Length:
5 11/16"
Mounting Orientation:
Any
Material:
Rolled Steel
Certifications:
UL Recognized, CSA, A2L Certified
Country of Origin:
Mexico
UPC:
786674069863
Lifecycle Status:
Active
Century EM3738F direct-drive condenser fan motor, 1/2 HP, single-phase 460V, 1075 RPM. TEAO enclosure with reversible rotation and 48-frame size. Rated 4.3 FLA with 10 MFD capacitor. OEM replacement for Regal Rexnord and compatible with multiple HVAC equipment lines.
