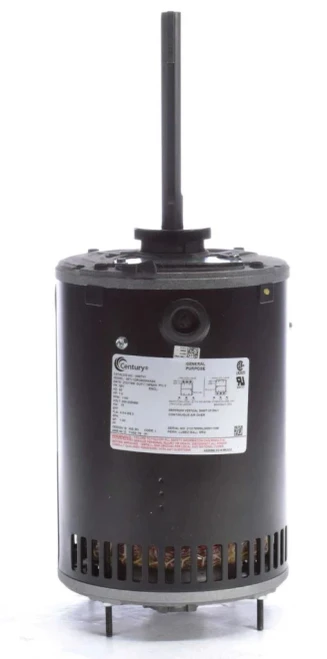

Century Motors H667V1 Condenser Fan Motor 1 HP 460V

Regal Rexnord - Century Motors

$408.95

In Stock — 10+ available

Write a Review
SKU:
H667V1
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $34.95 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Condenser Fan Motor
Subcategory:
Three-Phase AC Motor
Application:
Residential/Commercial
System Type:
Split System, Package Unit, Rooftop Unit
Installation Type:
OEM Replacement
Voltage:
230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
2.3/4.6 A
Horsepower:
1 HP
RPM:
1140 RPM
Speeds:
1
Frame Size:
56Y Frame
Mounting Type:
Vertical/Horizontal
Fuel Type:
Electric
Material:
Rolled Steel
Motor Type:
Three Phase
Power (kW):
0.75 kW
Service Factor:
1.0
Duty:
Continuous
Ambient Temperature:
60°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Shaft Type:
Keyed
Overall Length:
16.52"
Frame Length:
8.15"
Country of Origin:
Mexico
UPC:
786674074126
Lifecycle Status:
Active
Century 1 HP three-phase condenser fan motor rated 460/230V at 1140 RPM with 56Y frame. Features open-air-over (OPAO) enclosure, automatic thermal protection, and permanently lubricated double-sealed bearings. Suitable for vertical or horizontal mounting in HVAC condenser applications.
