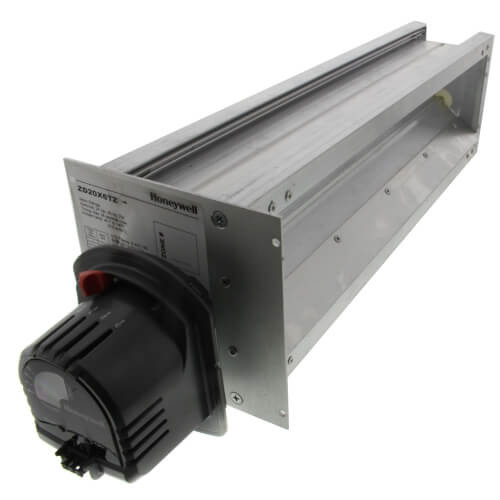

The Resideo ZD20X6TZ is a 24V AC power-close, spring-return rectangular damper designed for zone control in forced-air HVAC systems. Built with extruded aluminum frame and blades, it features a built-in M847D-ZONE actuator motor, adjustable range stops, and LED status indication. Rated for up to 1 inch water column static pressure with less than 1% leakage at 0.5 inch WC. Backed by a 5-year warranty.
Resideo ZD20X6TZ 24V Rectangular Damper 20x6 Inch
Resideo
$275.95
In Stock
- Fits brands
- Resideo, Honeywell Home
(No reviews yet)
Write a Review
Write a Review
Resideo
Resideo ZD20X6TZ 24V Rectangular Damper 20x6 Inch
- SKU:
- ZD20X6TZ
- Product Type:
- Zone Damper
- Subcategory:
- Rectangular Duct Damper
- Application:
- Residential/Commercial
- System Type:
- Split System, Heat Pump, Package Unit, Furnace, Air Handler
- Installation Type:
- OEM Replacement
- Voltage:
- 24V AC
- Voltage Class:
- Low Voltage
- Phase:
- Single Phase
- Mounting Type:
- Direct Drive
- Temperature Range:
- 40°F to 140°F
- Pressure Rating:
- 1 inch WC
- Material:
- Extruded Aluminum
- Control Type:
- Non-Programmable
