Marathon GT1023A general-purpose motor delivers 15 HP at 1182 RPM for industrial applications. Three-phase, 230/460V dual-voltage, TEFC enclosure with rigid base mount and reversible rotation.

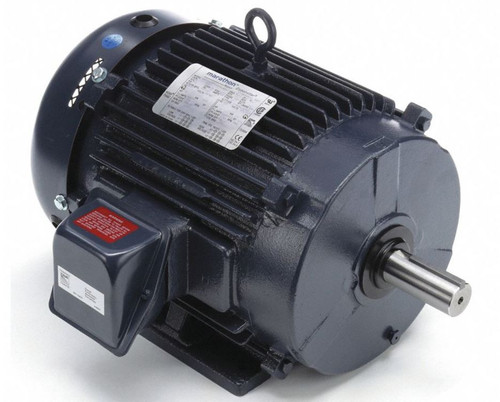

Regal Rexnord Marathon GT1023A 15 HP 3-Phase Motor 230/460V TEFC
Regal Rexnord - Marathon
$2,013.95
- SKU:
- GT1023A
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- Three-Phase Industrial Motor
- Application:
- Industrial
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 40.0/20.0 A
- Horsepower:
- 15 HP
- RPM:
- 1182 RPM
- Speeds:
- 1
- Frame Size:
- 284T Frame
- Mounting Type:
- Rigid Base
- Fuel Type:
- Electric
- Material:
- Cast Iron
- Power (kW):
- 11.2 kW
- Service Factor:
- 1.15
- KVA Code:
- G
- NEMA Design:
- B
- Power Factor:
- 77.5%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Inverter Duty:
- Constant 10:1/Variable 10:1
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6311, opposite end 6211
- Overall Length:
- 26.65"
- Frame Length:
- 11.41"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1/F2 Capable
- IP Rating:
- IP55
- Hazardous Location:
- Division 2 T2B
- Country of Origin:
- Mexico
- UPC:
- 722856063366
