Marathon 15 HP general-purpose motor, 3-phase, 230/460V, 1772 RPM, TEFC enclosure. Squirrel cage design rated for line or inverter starting with 92.4% efficiency and 1.15 service factor.

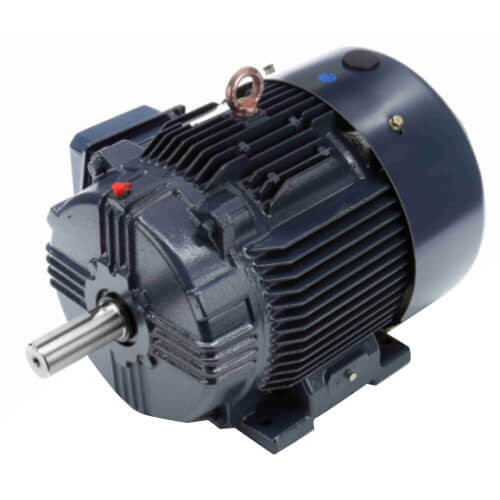

Regal Rexnord Marathon GT1022A 15 HP Motor 230/460V 3-Phase TEFC
Regal Rexnord - Marathon
$1,303.95
- SKU:
- GT1022A
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- Three-Phase Industrial Motor
- Application:
- Industrial
- System Type:
- Pump Drive, Compressor, Air Handler, Rooftop Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 37.5/18.8 A
- Horsepower:
- 15 HP
- RPM:
- 1770 RPM
- Speeds:
- 1
- Frame Size:
- 254T Frame
- Mounting Type:
- Rigid Base
- Fuel Type:
- Electric
- Material:
- Cast Iron
- Power (kW):
- 11.2 kW
- Service Factor:
- 1.15
- KVA Code:
- G
- NEMA Design:
- B
- Power Factor:
- 83%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Line Or Inverter
- Inverter Duty:
- Constant 10:1/Variable 10:1
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6309, opposite end 6209
- Overall Length:
- 24.15"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1/F2 Capable
- IP Rating:
- IP55
- Hazardous Location:
- Division 2 T2B
- Country of Origin:
- Mexico
- UPC:
- 722856067203
