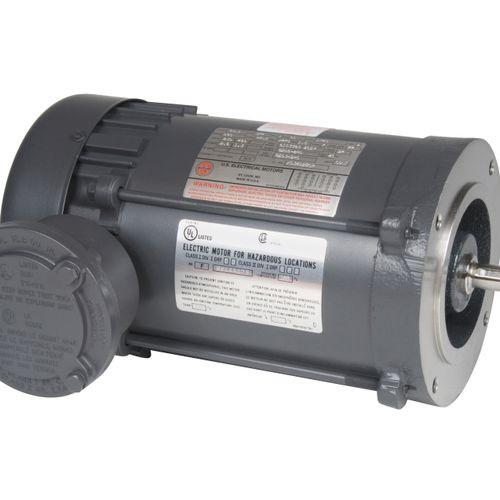

Nidec XS14CA2J Explosion Proof Motor 1/4 HP 115/208-230V

Nidec-US Motors

$489.95

In Stock — 10+ available

Write a Review
SKU:
XS14CA2J
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $35.50 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Explosion Proof Motor
Subcategory:
Fractional Horsepower
Application:
Commercial/Industrial
System Type:
Air Compressors, Blowers, Conveyors, Pumps
Installation Type:
OEM Replacement
Voltage:
115/208-230V & 110/220V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
5.1/2.5-2.5 A & 5.6/2.8 A
Horsepower:
1/4 HP
RPM:
1725/1425 RPM
Speeds:
1
Frame Size:
56
Mounting Type:
Rigid Base
Fuel Type:
Electric
Material:
Rolled Steel
Motor Type:
Capacitor Start
Power (kW):
0.2 kW
Service Factor:
1.0
KVA Code:
N
Locked Rotor Torque:
68.23 oz-ft
Breakdown Torque:
45.72 oz-ft
Ambient Temperature:
40°C
Start Capacitor:
297 MFD
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6203, opposite end 6203
Shaft Type:
Single
US Motors/Nidec XS14CA2J is a 1/4 HP explosion-proof motor rated for hazardous locations (Class I Groups C & D, Class II Groups E, F & G). Single-phase, 1725 RPM, TENV enclosure, 56 Frame with rigid base mount. Dual voltage 115/208-230V & 110/220V, 50/60 Hz. Continuous duty with automatic overload protection and Class F insulation.
