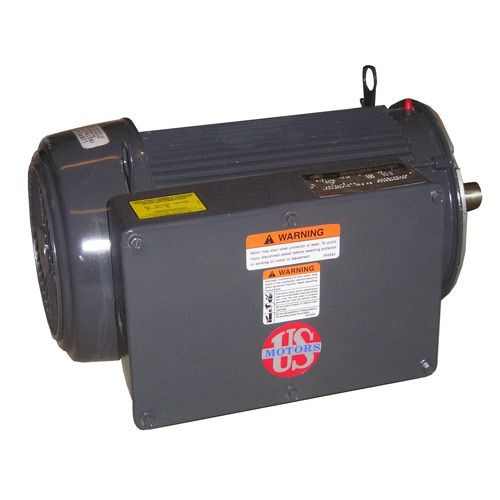

Nidec US Motors FDU5CM2K21Z 5 HP Motor 230V 1725 RPM TEFC

Nidec-US Motors

$938.95
Write a Review
SKU:
FDU5CM2K21Z

Sold by freight quote

Tell us where it’s going and we’ll come back with a price and freight cost.

Request price & availability

We reply within one business day — quotes@globalpartsupply.com

Specifications

Product Type:
Single-Phase Motor
Subcategory:
General Purpose / Agricultural
Application:
Residential/Commercial
System Type:
Pump, Compressor, Blower, Agricultural Equipment
Installation Type:
OEM Replacement
Voltage:
230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
29.0 A
Horsepower:
5 HP
RPM:
1725 RPM
Speeds:
1
Frame Size:
215
Mounting Type:
Footed
Temperature Range:
40°C Ambient, Continuous Duty
Fuel Type:
Electric
Material:
Extruded Aluminum Frame
Service Factor:
1.15
KVA Code:
G
Ambient Temperature:
40°C
Bearing Sizes:
shaft end 6208-2Z-J/C3, opposite end 6205-2Z-J/C3
Nidec US Motors extra-high torque single-phase motor rated 5 HP at 230V, 1725 RPM. TEFC enclosure with Class F insulation, manual reset thermal overload protector, and double-shielded bearings. Designed for agricultural and industrial applications including agitators, augers, compressors, and conveyors. Service factor 1.15.
