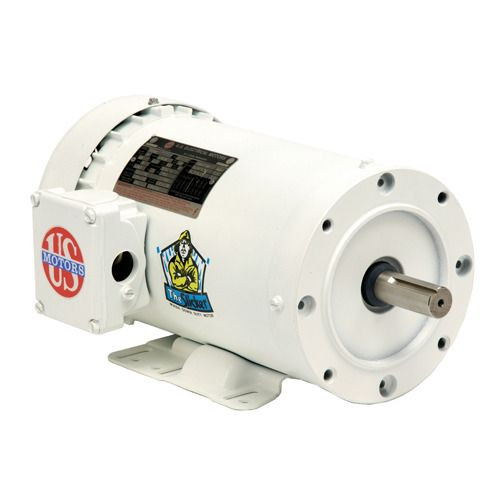

Nidec-US Motors 1.5 HP single-phase motor rated 115/230V, 1725 RPM. TEFC (totally enclosed fan-cooled) enclosure with white epoxy finish. Suitable for HVAC blower applications and general-purpose industrial use.
Specifications
- Product Type:
- Single-Phase Motor
- Subcategory:
- General Purpose / Blower
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Package Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 115/230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 1.5 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Fuel Type:
- Electric
- Material:
- Epoxy
- Frame Size:
- 56
- Mounting Type:
- C-Face / Footed
- Motor Type:
- Capacitor Start
- Power (kW):
- 1.1 kW
- Service Factor:
- 1.15
- Service Factor Amps:
- 15.8/7.9A
- KVA Code:
- J
- Locked Rotor Torque:
- 252 oz-ft
- Breakdown Torque:
- 182.1 oz-ft
- Ambient Temperature:
- 40°C
- Start Capacitor:
- 896 MFD
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Single
