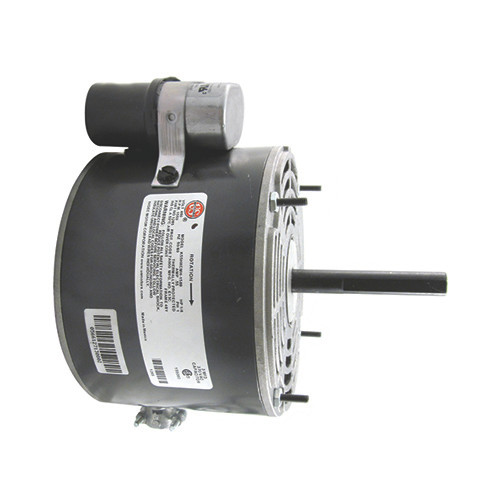

Nidec US Motors 6138 Condenser Fan Motor 1/4 HP 460V

Specifications

Product Type:

Condenser Fan Motor

Subcategory:

Single-Speed PSC Motor

Application:

Commercial

System Type:

Commercial Refrigeration, HVAC Condenser

Installation Type:

OEM Replacement

Voltage:

460V

Phase:

Single Phase

Amperage:

0.9

Horsepower:

1/4 HP

RPM:

1625 RPM

Speeds:

1

MFD:

5.0 MFD 370V

Frame Size:

48

Mounting Type:

Stud Mount

Material:

Rolled Steel

Voltage Class:

Line Voltage

Motor Type:

PSC

Power (kW):

0.2 kW

Locked Rotor Torque:

6.692 oz-ft

Breakdown Torque:

22.2 oz-ft

Ambient Temperature:

50°C

Bearings:

SAB / SAB

Shaft Type:

Single

Stack Length:

1 1/2"

Bearing Sizes:

shaft end 6201, opposite end 6201
