1/4 HP condenser fan motor rated for 460V single-phase operation at 1075 RPM. TEAO enclosure with double-sealed ball bearings and Class F insulation for high-ambient applications up to 70°C. Direct-drive stud mount design with reversible rotation; includes automatic thermal overload protection. Requires 7.5 MFD 370V capacitor.

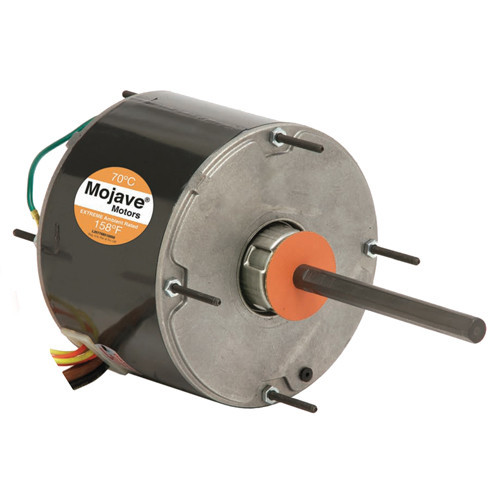

Nidec-US Motors 3736H Condenser Fan Motor 1/4 HP 460V
Nidec-US Motors
$106.95
In Stock — 10+ available
(No reviews yet)
Write a Review
Write a Review
Nidec-US Motors
Nidec-US Motors 3736H Condenser Fan Motor 1/4 HP 460V
- SKU:
- 3736H
- Product Type:
- Condenser Fan Motor
- Subcategory:
- Direct-Drive PSC Motor
- Application:
- Residential/Commercial
- System Type:
- Split System, Package Unit, Rooftop Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 460V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 0.8A
- Horsepower:
- 1/4 HP
- RPM:
- 1075 RPM
- Speeds:
- 1
- MFD:
- 7.5 MFD 370V
- Frame Size:
- 48Y Frame
- Mounting Type:
- Stud Mount
- Fuel Type:
- Electric
- Material:
- Rolled Steel
