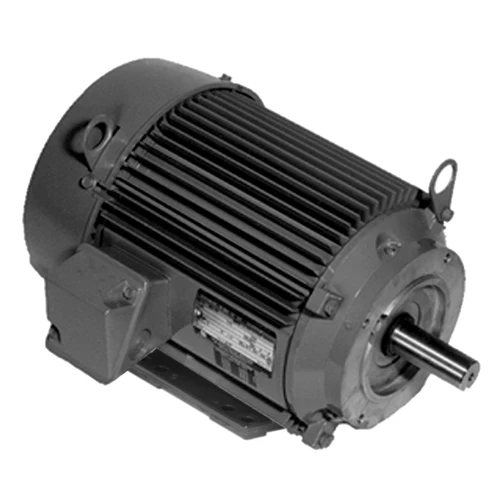

Nidec U3P1DCR 3 HP 3-Phase Motor 3600 RPM 208-230/460V TEFC

Nidec-US Motors

$659.95

In Stock

Write a Review
SKU:
U3P1DCR
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $86.00 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
General Purpose AC Motor
Subcategory:
Three-Phase Industrial Motor
Application:
Commercial/Industrial
System Type:
Industrial Machinery, Equipment Drive
Installation Type:
OEM Replacement
Voltage:
208-230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
8.4-7.8/3.9 A
Horsepower:
3 HP
RPM:
3540 RPM
Speeds:
1
Frame Size:
182
Mounting Type:
Footless/Horizontal
Fuel Type:
Electric
Material:
Aluminum
Motor Type:
Three Phase
Power (kW):
2.2 kW
Service Factor:
1.25
KVA Code:
K
Locked Rotor Torque:
251% of full-load torque
Breakdown Torque:
336% of full-load torque
Ambient Temperature:
40°C
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6206-2Z-J/C3, opposite end 6205-2Z-J/C3
Shaft Type:
Single
Nidec-US Motors 3 HP general-purpose industrial motor with 3-phase power, 3600 RPM, and TEFC enclosure. Rated 208-230/460V with Class F insulation and 1.25 service factor. Features aluminum UNIMOUNT frame (182TC), ball bearings, and reversible rotation for flexible mounting on machinery and equipment.
