Leeson 191486.00 1 HP 3-Phase Motor 3600 RPM 230/460V TEFC

Leeson

$1,117.95

In Stock

Write a Review
SKU:
191486.00
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $42.10 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Three-Phase AC Motor
Subcategory:
General Purpose Induction Motor
Application:
Commercial/Industrial
System Type:
General Purpose Industrial
Installation Type:
OEM Replacement
Voltage:
230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
2.6/1.3 A
Horsepower:
1 HP
RPM:
3450 RPM
Speeds:
1
Frame Size:
143TC Frame
Mounting Type:
C-Face Flange / Rigid Base
Fuel Type:
Electric
Material:
Stainless Steel (300 Series)
Power (kW):
0.75 kW
Service Factor:
1.15
KVA Code:
J
NEMA Design:
B
Power Factor:
89.5%
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6205, opposite end 6205
Overall Length:
13 5/8"
Frame Length:
7.99"
Mounting Orientation:
Horizontal
Assembly Position:
F1 Only
IP Rating:
IP55
Certifications:
UL Recognized, CSA, CE
Country of Origin:
China
UPC:
691720245507
Lifecycle Status:
Active

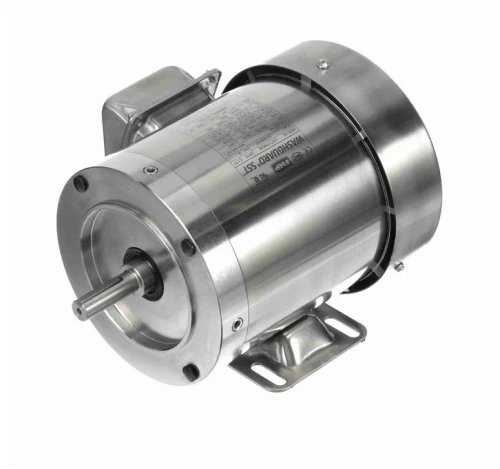

Leeson 1 HP three-phase general-purpose motor rated 3600 RPM at 230/460V, 60 Hz. TEFC (totally enclosed fan-cooled) enclosure with 143TC frame and C-face flange/rigid base mount. All stainless steel construction for washdown and corrosion-resistant environments. Service factor 1.15, Class F insulation, reversible rotation.
