Nidec U1P2DFC 1 HP 3-Phase Motor 208-230/460V 1800 RPM

Nidec-US Motors

$349.95

In Stock — 10+ available

Write a Review
SKU:
U1P2DFC
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $34.40 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Three-Phase General-Purpose Motor
Subcategory:
Industrial Electric Motor
Application:
Commercial/Industrial
Installation Type:
OEM Replacement
Voltage:
208-230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
3.0-3.1/1.5 A
Horsepower:
1 HP
RPM:
1765 RPM
Speeds:
1
Frame Size:
56
Mounting Type:
Rigid Base Mount
Fuel Type:
Electric
Motor Type:
Three Phase
Power (kW):
0.7 kW
Service Factor:
1.25
KVA Code:
M
Locked Rotor Torque:
354% of full-load torque
Breakdown Torque:
483% of full-load torque
Ambient Temperature:
40°C
Bearing Sizes:
shaft end 6203-2Z-J/C3, opposite end 6203-2Z-J/C3

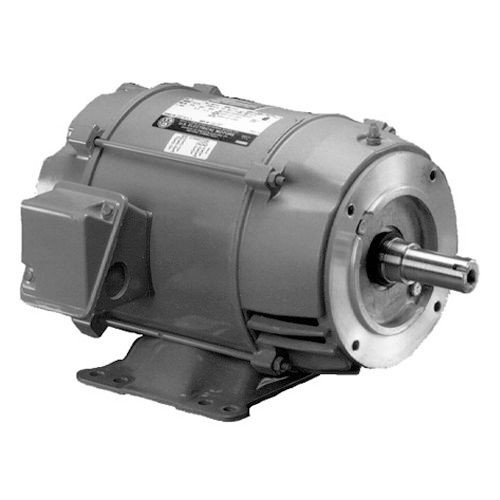

Nidec 1 HP three-phase general-purpose motor with 1800 RPM, TEFC enclosure, and 56C frame. Rated 208-230/460V with 3.0-3.1/1.5A amperage. Features ball bearings, reversible rotation, and Class F insulation with 1.25 service factor. Direct replacement for industrial and HVAC applications.
