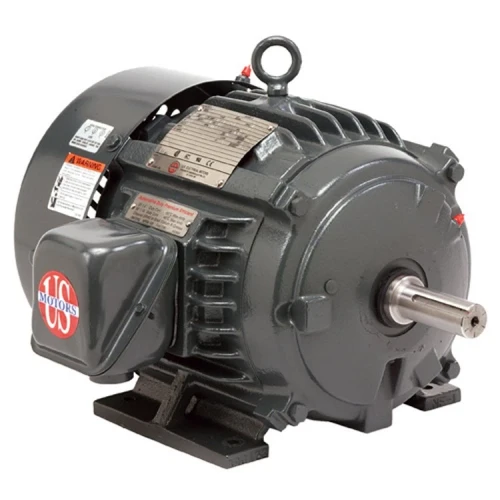

Nidec HD20P3E 20 HP 3-Phase Motor 286T TEFC 1200 RPM

Nidec-US Motors

$2,305.95
Write a Review
SKU:
HD20P3E

Sold by freight quote

Tell us where it’s going and we’ll come back with a price and freight cost.

Request price & availability

We reply within one business day — quotes@globalpartsupply.com

Specifications

Product Type:
Three-Phase Industrial Motor
Subcategory:
General Purpose AC Motor
Application:
Industrial
System Type:
Pump, Compressor, Fan, Blower, Material Handling
Installation Type:
OEM Replacement
Voltage:
208-230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
49.0/24.4 A
Horsepower:
20 HP
RPM:
1180 RPM
Speeds:
1
Frame Size:
286
Mounting Type:
Foot Mount
Fuel Type:
Electric
Material:
Cast Iron
Motor Type:
Three Phase
Power (kW):
14.9 kW
Service Factor:
1.25
KVA Code:
G
Locked Rotor Torque:
192% of full-load torque
Breakdown Torque:
258% of full-load torque
Ambient Temperature:
40°C
Bearing Sizes:
shaft end 6310-2Z-J/C3, opposite end 6210-2Z-J/C3
Duty:
Hostile Duty
Bearings:
Ball / Ball
Shaft Type:
Single
C Dimension:
27 1/2"
Nidec HD20P3E industrial-duty 20 HP three-phase motor rated 230/460V, 1200 RPM, NEMA 286T frame with TEFC enclosure. Cast-iron construction with corrosion-resistant paint for harsh environments (mills, chemical plants, foundries). Reversible rotation, ball bearings, 1.15 service factor. Suitable for variable and constant torque loads on inverter power.
