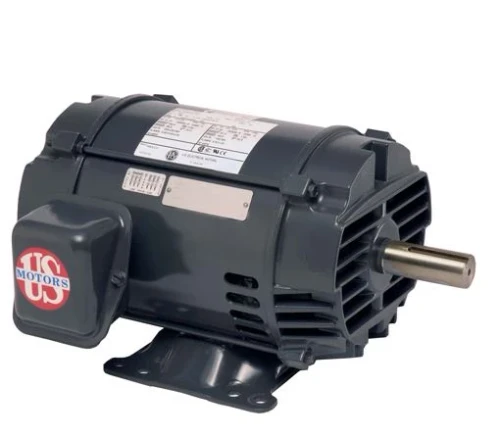

Nidec-US Motors D125P3G general-purpose motor rated 125 HP, 3-phase, 575V, 1200 RPM. Open drip-proof (ODP) NEMA premium efficient (IE3) design with Class F insulation and 1.15 service factor. Suitable for pumps, fans, compressors, and material handling applications. 95% full-load efficiency, 122 FLA.
Specifications
- Product Type:
- General Purpose Motor
- Application:
- Commercial/Industrial
- System Type:
- Pump, Fan, Compressor, Material Handling
- Installation Type:
- OEM Replacement
- Voltage:
- 575V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Horsepower:
- 125 HP
- RPM:
- 1190 RPM
- Speeds:
- 1
- Frame Size:
- 445
- Fuel Type:
- Electric
- Motor Type:
- Three Phase
- Power (kW):
- 93.2 kW
- Service Factor:
- 1.15
- Service Factor Amps:
- 135A
- KVA Code:
- F
- Locked Rotor Torque:
- 174% of full-load torque
- Breakdown Torque:
- 232% of full-load torque
- Ambient Temperature:
- 40°C
- Bearing Sizes:
- shaft end 6220-J, opposite end 6313-J
