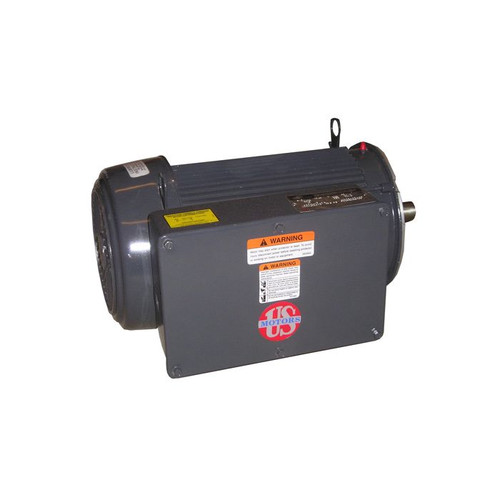

Nidec FD34CM2PCR 3/4 HP Motor 115/230V 1800 RPM TEFC

Nidec-US Motors

$279.95

In Stock — 10+ available

Write a Review
SKU:
FD34CM2PCR
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $35.50 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Single-Phase Motor
Subcategory:
Farm Duty / High-Torque
Application:
Residential/Commercial
System Type:
Pump, Compressor, Auger, General Purpose
Installation Type:
OEM Replacement
Voltage:
115/230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
11.4/5.7 A
Horsepower:
3/4 HP
RPM:
1725 RPM
Speeds:
1
Frame Size:
56
Mounting Type:
Rigid Base Mount
Fuel Type:
Electric
Material:
Rolled Steel
Motor Type:
Capacitor Start
Power (kW):
0.6 kW
Service Factor:
1.15
Service Factor Amps:
11.8/5.9A
KVA Code:
L
Locked Rotor Torque:
168.8 oz-ft
Breakdown Torque:
104.6 oz-ft
Ambient Temperature:
40°C
Start Capacitor:
509 MFD
Bearing Sizes:
shaft end 6203, opposite end 6203
Nidec-US Motors 3/4 HP single-phase motor rated for high-torque farm and industrial applications including augers, compressors, and feeders. TEFC enclosure, 1800 RPM, dual voltage 115/230V, 56C frame with ball bearings and capacitor start. Class F insulation, 1.15 service factor.
