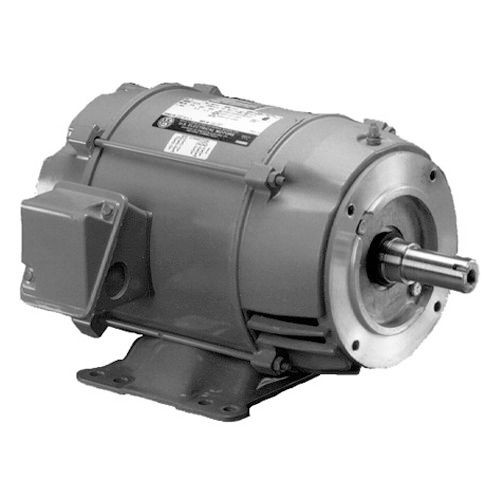

Nidec DJ5P3DM Close Coupled Pump Motor 5 HP 208-230/460V

Nidec-US Motors

$935.95
Write a Review
SKU:
DJ5P3DM

Sold by freight quote

Tell us where it’s going and we’ll come back with a price and freight cost.

Request price & availability

We reply within one business day — quotes@globalpartsupply.com

Specifications

Product Type:
Close Coupled Pump Motor
Subcategory:
Industrial Pump Motor
Application:
Commercial/Industrial
System Type:
Pump System
Installation Type:
OEM Replacement
Voltage:
208-230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
15.2-14.5/7.3 A
Horsepower:
5 HP
RPM:
1170 RPM
Speeds:
1
Frame Size:
215
Mounting Type:
Rigid Base
Fuel Type:
Electric
Material:
Rolled Steel Frame with Cast Aluminum End-Shields, Stainless Steel Shaft
Motor Type:
Three Phase
Power (kW):
3.7 kW
Service Factor:
1.15
KVA Code:
H
Locked Rotor Torque:
257% of full-load torque
Breakdown Torque:
310% of full-load torque
Ambient Temperature:
40°C
Bearing Sizes:
shaft end 6309-2Z-J/C3, opposite end 6205-2Z-J/C3
Nidec-US Motors DJ5P3DM close coupled pump motor delivers 5 HP at 1170 RPM for direct-drive pump applications. Three-phase, 208-230/460V 60Hz operation with Open Drip Proof (ODP) enclosure and NEMA 215JM frame. Features Class F insulation, auto overload thermal protection, reversible rotation, and 1.15 service factor.
