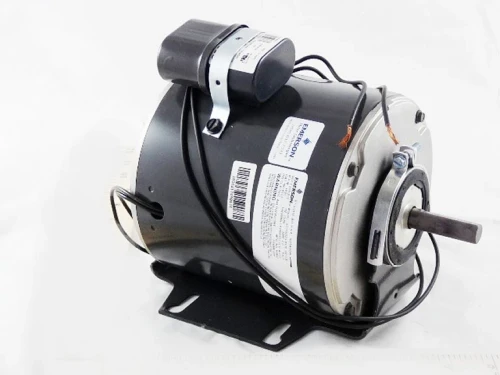

1/3 HP condenser fan motor rated for 208-230V, 1625 RPM operation in HVAC systems. Features permanent split capacitor design, open drip-proof enclosure, and automatic overload protection for continuous duty.
Specifications
- Product Type:
- Condenser Fan Motor
- Subcategory:
- Permanent Split Capacitor (PSC)
- Application:
- Residential/Commercial
- System Type:
- Split System, Package Unit, Air Handler
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 2.2A
- Horsepower:
- 1/3 HP
- RPM:
- 1625 RPM
- Speeds:
- 1
- Mounting Type:
- Resilient Mount
- Fuel Type:
- Electric
- Frame Size:
- 48
- Motor Type:
- PSC
- Power (kW):
- 0.3 kW
- Locked Rotor Torque:
- 5.422 oz-ft
- Breakdown Torque:
- 34.54 oz-ft
- Ambient Temperature:
- 50°C
- Bearings:
- SAB / SAB
