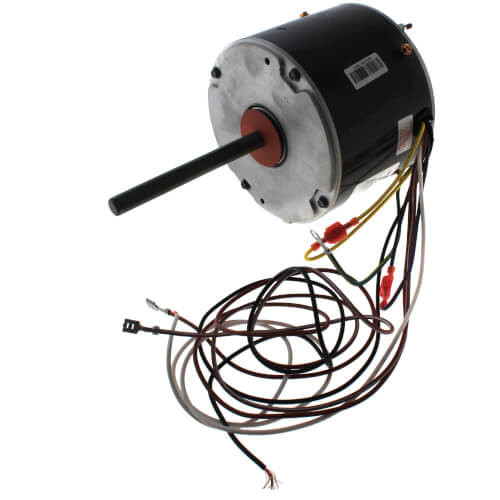

Nidec US Motors 3323 condenser fan motor delivers 1/3 HP at 1075 RPM for residential and commercial HVAC systems. Single-phase, 208-230V operation with TEAO enclosure, automatic overload protection, and ball bearings. Includes 7.5 MFD 370V capacitor requirement.
Specifications
- Product Type:
- Condenser Fan Motor
- Subcategory:
- Single-Phase AC Motor
- Application:
- Residential/Commercial
- System Type:
- Split System, Package Unit, Air Handler
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 2.0 A
- Horsepower:
- 1/3 HP
- RPM:
- 1075 RPM
- Speeds:
- 1
- MFD:
- 7.5 MFD 370V
- Frame Size:
- 48
- Mounting Type:
- Stud Mount
- Fuel Type:
- Electric
- Material:
- Steel
- Motor Type:
- PSC
- Power (kW):
- 0.3 kW
- Service Factor:
- 1.0
- Service Factor Amps:
- 2.0A
- Locked Rotor Torque:
- 7.514 oz-ft
- Breakdown Torque:
- 41.35 oz-ft
- Ambient Temperature:
- 60°C
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6201, opposite end 6201
