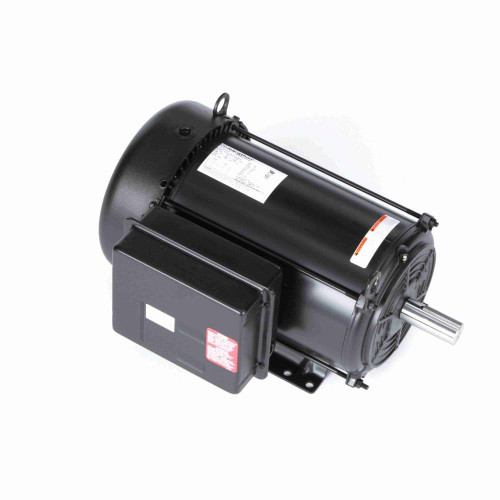

Marathon Z115 7.5 HP Motor 230V 1750 RPM 1-Phase TEFC

Specifications

Product Type:

Electric Motor

Subcategory:

Single-Phase Industrial Motor

Application:

Residential/Commercial

System Type:

Compressor, Pump, Fan Drive

Installation Type:

OEM Replacement

Voltage:

230V

Voltage Class:

Line Voltage

Phase:

Single Phase

Horsepower:

7.5 HP

RPM:

1750 RPM

Speeds:

1

Mounting Type:

Rigid Base

Fuel Type:

Electric

Frame Size:

215TZ Frame

Motor Type:

Capacitor Start / Capacitor Run

Power (kW):

5.6 kW

Service Factor:

1.15

KVA Code:

K

NEMA Design:

L

Power Factor:

95%

Duty:

Continuous

Ambient Temperature:

40°C

Starting Method:

Across The Line

Bearings:

Ball / Ball

Bearing Sizes:

shaft end 6307, opposite end 6206

Shaft Type:

Single Special Extension

Overall Length:

21.09"

Frame Length:

12.4"

Mounting Orientation:

Horizontal

Assembly Position:

F1 Only

IP Rating:

IP43

Material:

Rolled Steel

Certifications:

CSA, CE

Country of Origin:

Mexico

UPC:

722856261151
