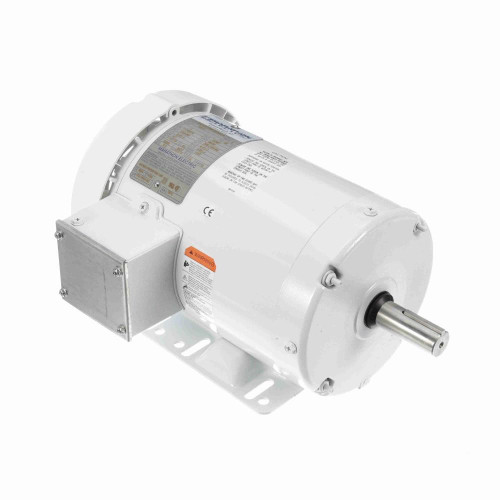

Marathon N323 1 HP 3-Phase TEFC Motor 1170 RPM

Regal Rexnord - Marathon

$797.95

In Stock

Write a Review
SKU:
N323
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $43.95 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Three-Phase Electric Motor
Subcategory:
Industrial Duty Motor
Application:
Commercial/Industrial
System Type:
Compressor, Blower, Pump, General Industrial
Installation Type:
OEM Replacement
Voltage:
230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Horsepower:
1 HP
RPM:
1170 RPM
Speeds:
1
Fuel Type:
Electric
Material:
Epoxy Finish
Mounting Type:
Rigid Base
Frame Size:
145T Frame
Motor Type:
Three Phase
Power (kW):
0.75 kW
Service Factor:
1.15
KVA Code:
K
NEMA Design:
B
Power Factor:
60%
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Line Or Inverter
Inverter Duty:
Constant 10:1
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6205, opposite end 6203
Shaft Type:
Single
Overall Length:
13.43"
Frame Length:
7 1/2"
Mounting Orientation:
Horizontal
Assembly Position:
F1 Only
IP Rating:
IP55
Certifications:
UL Recognized, CSA, CE
Country of Origin:
USA
UPC:
722856028983
Lifecycle Status:
Active
Marathon 1 HP three-phase electric motor with TEFC (totally enclosed fan-cooled) enclosure, rated for 230/460V operation at 1170 RPM. White epoxy finish provides corrosion resistance. Suitable for HVAC blower applications, compressors, and general industrial duty. OEM replacement for Regal Rexnord equipment.
