Marathon 0.25 HP oil burner motor rated for 115V single-phase operation at 1725 RPM. Semi-enclosed design suitable for residential oil heating systems. Direct replacement for compatible oil burner applications.

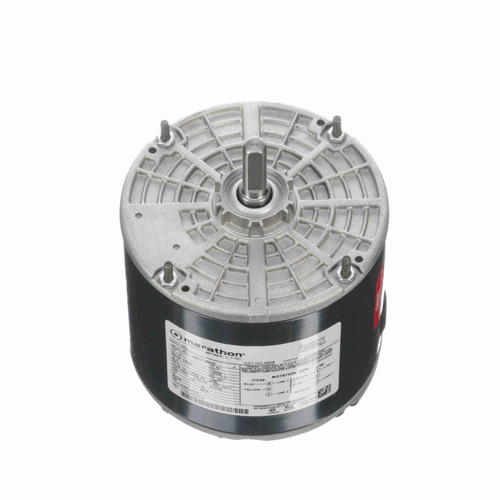

Marathon O002 Oil Burner Motor 0.25 HP 115V 1725 RPM
Regal Rexnord - Marathon
$154.95
In Stock — 10+ available
- SKU:
- O002
Specifications
- Product Type:
- Oil Burner Motor
- Application:
- Residential
- System Type:
- Oil Burner
- Installation Type:
- OEM Replacement
- Voltage:
- 115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 1/4 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Fuel Type:
- Oil
- Mounting Type:
- Round
- Frame Size:
- 48N Frame
- Motor Type:
- Split Phase
- Power (kW):
- 0.19 kW
- Service Factor:
- 1.0
- KVA Code:
- M
- Power Factor:
- 72.2%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Single Special Extension
- Overall Length:
- 7.59"
- Frame Length:
- 4 1/4"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1 Only
- IP Rating:
- IP10
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA
- Country of Origin:
- Mexico
- UPC:
- 722856041494
- Lifecycle Status:
- Active
