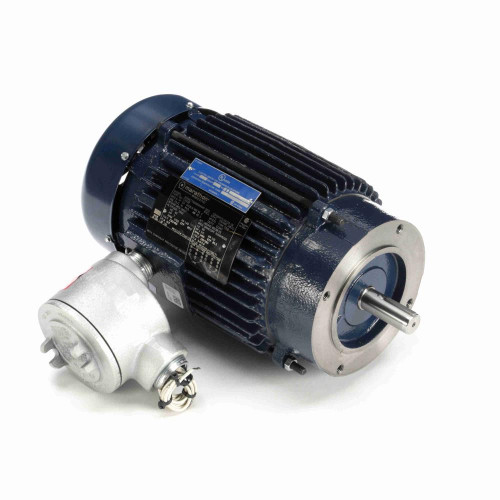

Marathon C302B Explosion Proof Motor 2 HP 3500 RPM 230/460V

Specifications

Product Type:

Explosion Proof Motor

Application:

Industrial

Installation Type:

OEM Replacement

Voltage:

230/460V

Voltage Class:

Line Voltage

Phase:

Three Phase

Amperage:

5.2/2.6A

Horsepower:

2 HP

RPM:

3500 RPM

Speeds:

1

Frame Size:

145TC Frame

Mounting Type:

C-Face / Footless

Motor Type:

Three Phase

Power (kW):

1.5 kW

Service Factor:

1.15

KVA Code:

L

NEMA Design:

B

Power Factor:

83%

Duty:

Continuous

Ambient Temperature:

40°C

Starting Method:

Across The Line

Bearings:

Ball / Ball

Bearing Sizes:

shaft end 6205, opposite end 6203

Shaft Type:

Single

Overall Length:

15 3/16"

Frame Length:

7 1/2"

Mounting Orientation:

Horizontal

Assembly Position:

F1 Only

IP Rating:

IP54

Hazardous Location:

Div 1 Exp Proof Cl I Gr D Cl Ii Gr Fg T3B

Fuel Type:

Electric

Material:

Cast Iron

Certifications:

UL Listed, CSA

Country of Origin:

Mexico

UPC:

722856066213
