Leeson M1130142.00 is a 1/4 HP DC permanent magnet metric motor rated 180V, 3000 RPM with 63D frame and IP54 enclosure. Built to IEC 34-1 standards with reversible rotation, terminal board connections, and easy brush access. Suitable for industrial and commercial applications requiring compact, reliable DC drive.

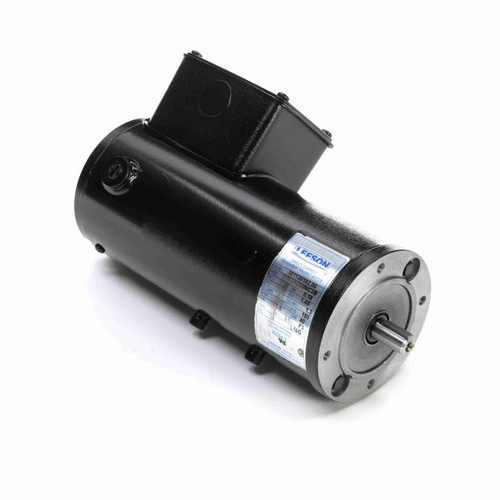

Leeson M1130142.00 Metric Motor 1/4 HP 180V 3000 RPM 63D
Leeson
$467.95
In Stock
Write a Review
Write a Review
Leeson
Leeson M1130142.00 Metric Motor 1/4 HP 180V 3000 RPM 63D
- SKU:
- M1130142.00
Specifications
- Product Type:
- DC Permanent Magnet Motor
- Subcategory:
- Metric Motor
- Application:
- Industrial/Commercial
- Installation Type:
- OEM Replacement
- Voltage:
- 180V
- Voltage Class:
- Line Voltage
- Amperage:
- 1.7 A
- Horsepower:
- 1/4 HP
- RPM:
- 3000 RPM
- Speeds:
- 1
- Frame Size:
- 63D Frame
- Mounting Type:
- B14
- Power (kW):
- 0.25 kW
- Service Factor:
- 1.0
- Output Torque:
- 81.1 oz-in
- Ambient Temperature:
- 40°C
- Bearing Sizes:
- shaft end 6201-13, opposite end 6201-13
- Overall Length:
- 8.78"
- Frame Length:
- 7.18"
- Fuel Type:
- Electric
- Connection Type:
- Terminal Board
- Material:
- Aluminum, Steel
- Country of Origin:
- USA
- UPC:
- 691720091463
- Lifecycle Status:
- Active
