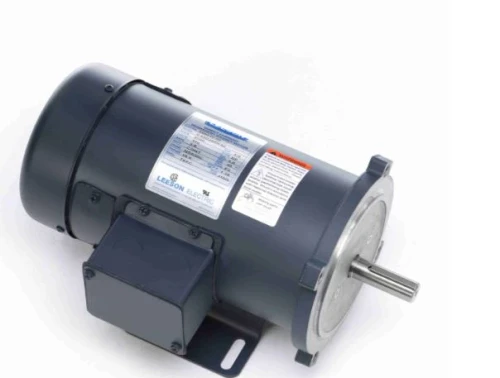

Leeson 098003.00 SCR Motor 1/4 HP 180V 1750 RPM

Leeson 098003.00 SCR Motor 1/4 HP 180V 1750 RPM

Leeson

$421.95

In Stock — 10+ available

Write a Review
SKU:
098003.00
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $31.65 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — call (312) 564-5212 or request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Shipping details

Specifications

Product Type:
DC Motor
Subcategory:
SCR Motor
Application:
Industrial
Installation Type:
OEM Replacement
Voltage:
180V
Voltage Class:
Line Voltage
Amperage:
1.4A
Horsepower:
0.25 HP
RPM:
1750 RPM
Speeds:
1
Frame Size:
SS56C Frame
Mounting Type:
Rigid C base
Fuel Type:
Electric
Connection Type:
Keyed Shaft
Motor Type:
PMDC
Power (kW):
0.19 kW
Service Factor:
1.0
Output Torque:
9 lb-in
Duty:
Continuous
Ambient Temperature:
40°C
Bearing Sizes:
shaft end 6203, opposite end 6203
Overall Length:
11 5/16"
Frame Length:
7"
Material:
Rolled Steel
Country of Origin:
USA
UPC:
691720000946
Lifecycle Status:
Active
Leeson permanent magnet DC motor rated 1/4 HP at 180V, 1750 RPM with SS56C frame and TEFC enclosure. Designed for SCR controller applications requiring adjustable speed, constant torque, and reversible operation. UL/CSA listed, sealed ball bearings, continuous duty rated.
!
