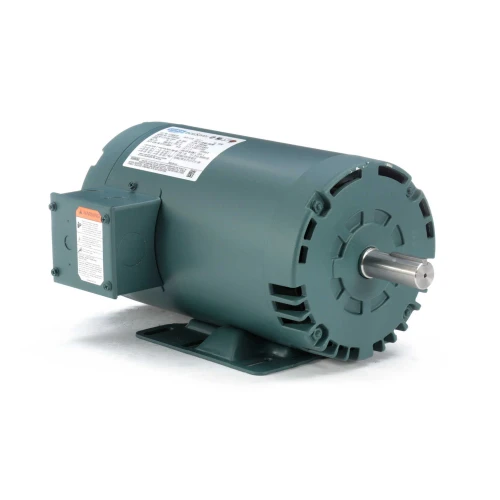

Leeson 2 HP three-phase general-purpose motor rated 230/460V, 60 Hz, 1745 RPM. Open Drip Proof (ODP) enclosure with NEMA 56HZ frame, keyed shaft (7/8" diameter × 2-1/4" length), rigid base mount, and ball bearings. Class F insulation with 1.15 service factor. Suitable for many industrial and commercial applications.
Specifications
- Product Type:
- Three-Phase General Purpose Motor
- Subcategory:
- Industrial AC Motor
- Application:
- Commercial/Industrial
- Installation Type:
- OEM Replacement
- Voltage:
- 230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 5.8/2.9A
- Horsepower:
- 2 HP
- RPM:
- 1745 RPM
- Speeds:
- 1
- Frame Size:
- 56HZ Frame
- Mounting Type:
- Rigid Base Mount
- Fuel Type:
- Electric
- Power (kW):
- 1.5 kW
- Service Factor:
- 1.15
- KVA Code:
- L
- NEMA Design:
- B
- Power Factor:
- 75.6%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Line Or Inverter
- Inverter Duty:
- Constant 10:1
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6205, opposite end 6203
- Shaft Type:
- Nema 145T
- Overall Length:
- 13 11/16"
- Frame Length:
- 8 1/2"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1 Only
- IP Rating:
- IP22
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA, CE
- Country of Origin:
- USA
- UPC:
- 691720041956
- Lifecycle Status:
- Active
