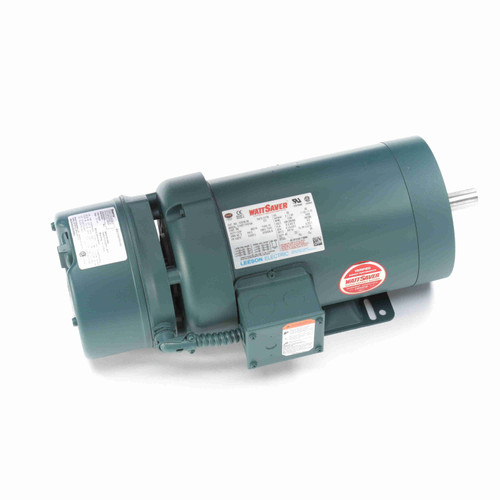

Leeson 122250.00 Brake Motor 2 HP 3-Phase 1745 RPM 208-230/460V

Leeson 122250.00 Brake Motor 2 HP 3-Phase 1745 RPM 208-230/460V

Leeson

$1,469.95

In Stock

(No reviews yet) Write a Review
SKU:
122250.00
Product Type:
Brake Motor
Subcategory:
AC Induction Motor
Application:
Commercial/Industrial
Installation Type:
OEM Replacement
Voltage:
208-230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
6.0-5.8/2.9 A
Horsepower:
2 HP
RPM:
1745 RPM
Speeds:
1
Frame Size:
145TC Frame
Mounting Type:
C-Face Footed Rigid Base
Fuel Type:
Electric
Material:
Rolled Steel
Adding to cart… The item has been added

Flat-rate shipping. The same price to anywhere in the 50 states.

Ships same or next business day · UPS Ground, typically 1–5 business days.

Shipping details

Leeson 2 HP three-phase brake motor with 145TC NEMA frame and TEFC enclosure. Operates at 1745 RPM on 208-230/460V, 60 Hz with 86.5% efficiency and Class F insulation. Features fail-safe positive stop and holding brake, reversible rotation, and continuous duty rating. Ideal for general-purpose applications requiring reliable stopping and holding torque.
!
