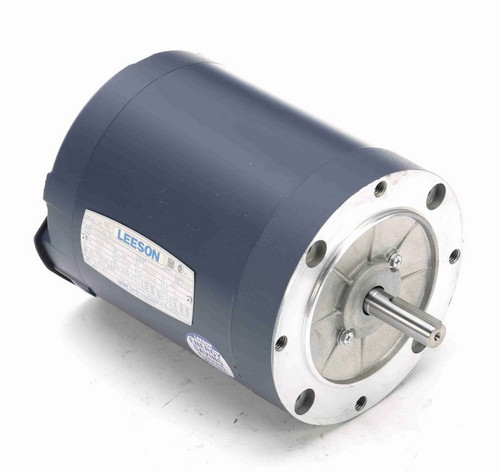

Leeson 113590.00 1 HP 3-Phase Motor 3600 RPM 230/460V TENV

Leeson

$593.95

In Stock

Write a Review
SKU:
113590.00
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $38.25 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Three-Phase AC Motor
Subcategory:
General Purpose Motor
Application:
Commercial/Industrial
System Type:
Washdown Duty, General Purpose Industrial
Installation Type:
OEM Replacement
Voltage:
230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Amperage:
2.8-2.6/1.3 A
Horsepower:
1 HP
RPM:
3450 RPM
Speeds:
1
Frame Size:
56C Frame
Mounting Type:
Rigid Base
Fuel Type:
Electric
Material:
Cast Iron, Stainless Steel Shaft
Power (kW):
0.75 kW
Service Factor:
1.15
KVA Code:
L
NEMA Design:
B
Power Factor:
84.8%
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6205, opposite end 6203
Shaft Type:
Nema 56
Overall Length:
11.58"
Frame Length:
6 1/2"
Mounting Orientation:
Horizontal
Assembly Position:
F1 Only
IP Rating:
IP55
Country of Origin:
USA
UPC:
691720012154
Lifecycle Status:
Active
Leeson 1 HP three-phase general-purpose motor rated 3600 RPM at 230/460V with TENV (Totally Enclosed Non-Ventilated) enclosure and 56C frame. Features sealed bearings, stainless steel shaft, white epoxy finish, and Class F insulation for washdown and corrosive environments.
