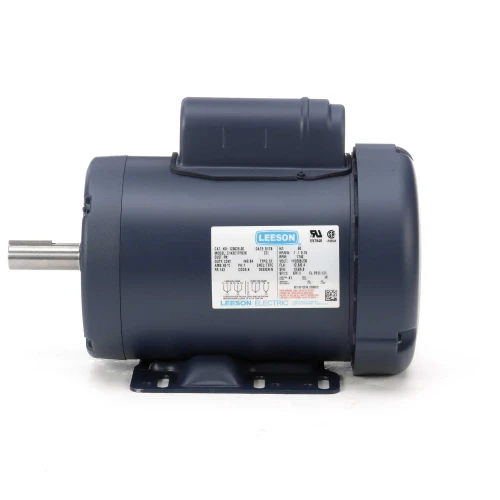

Leeson 120996.00 Close Coupled Pump Motor 1 HP 1740 RPM

Leeson

$711.95

In Stock

Write a Review
SKU:
120996.00
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $40.45 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Close-Coupled Pump Motor
Subcategory:
Pump Motor
Application:
Residential/Commercial
System Type:
Pump, Hydronic, Boiler
Installation Type:
OEM Replacement
Voltage:
115/230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Horsepower:
1 HP
RPM:
1740 RPM
Speeds:
1
Mounting Type:
Close-Coupled
Fuel Type:
Electric
Frame Size:
143JM Frame
Motor Type:
Capacitor Start
Power (kW):
0.75 kW
Service Factor:
1.15
KVA Code:
K
NEMA Design:
L
Power Factor:
68%
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6206, opposite end 6203
Shaft Type:
JM
Overall Length:
13.91"
Frame Length:
6 1/2"
Mounting Orientation:
Horizontal
Assembly Position:
F1 Only
IP Rating:
IP22
Material:
Rolled Steel
Certifications:
UL Recognized, CSA
Country of Origin:
USA
UPC:
691720016442
Lifecycle Status:
Active
Leeson 1 HP close-coupled pump motor rated for 115/230V single-phase operation at 1740 RPM. Open drip-proof (ODP) enclosure suitable for pump applications in residential and light commercial systems. Direct-drive design for reliable, efficient performance.
