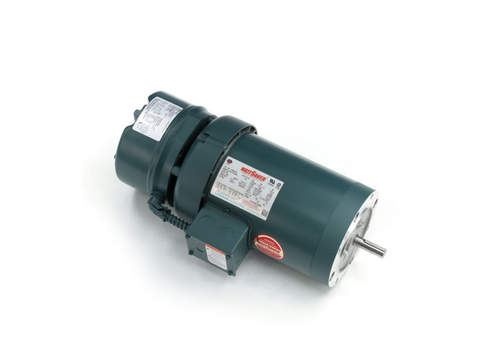

Leeson 119785.00 Brake Motor 1 HP 3-Phase 1750 RPM

Leeson

$4,741.95

In Stock

Write a Review
SKU:
119785.00
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Free shipping on this part.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Brake Motor
Subcategory:
Three-Phase Industrial
Application:
Industrial
Installation Type:
OEM Replacement
Voltage:
230/460V
Voltage Class:
Line Voltage
Phase:
Three Phase
Horsepower:
1 HP
RPM:
1750 RPM
Speeds:
1
Mounting Type:
Rigid Base
Frame Size:
56HC Frame
Motor Type:
Three Phase
Power (kW):
0.75 kW
Service Factor:
1.15
KVA Code:
L
NEMA Design:
B
Power Factor:
77.7%
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Line Or Inverter
Inverter Duty:
Constant 6:1
Bearings:
Ball / Ball
Bearing Sizes:
shaft end 6205, opposite end 6205
Shaft Type:
Nema 56
Overall Length:
18.01"
Frame Length:
9 1/2"
Mounting Orientation:
Horizontal
Assembly Position:
F1 Only
IP Rating:
IP56
Material:
Stainless Steel
Certifications:
UL Recognized, CSA, CE
Country of Origin:
USA
UPC:
691720102862
Lifecycle Status:
Active
Leeson 1 HP three-phase brake motor with TENV enclosure, rated for 230/460V operation at 1750 RPM. Designed for industrial applications requiring holding or stopping torque. Meets NEMA standards for reliable performance in demanding environments.
