Leeson 116709.00 Pressure Washer Motor 5 HP 230V 56HC

Leeson 116709.00 Pressure Washer Motor 5 HP 230V 56HC

Leeson

$774.95

In Stock

Write a Review
SKU:
116709.00
Product Type:
Pressure Washer Motor
Subcategory:
Single-Phase AC Motor
Application:
Residential/Commercial
Installation Type:
OEM Replacement
Voltage:
230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
20.8A
Horsepower:
5 HP
RPM:
3450 RPM
Speeds:
1
Frame Size:
56HC Frame
Mounting Type:
Rigid Base, C-Face
Fuel Type:
Electric
Material:
Rolled Steel
Adding to cart… The item has been added

Shipping: $86.00 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — call (312) 564-5212 or email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Shipping details

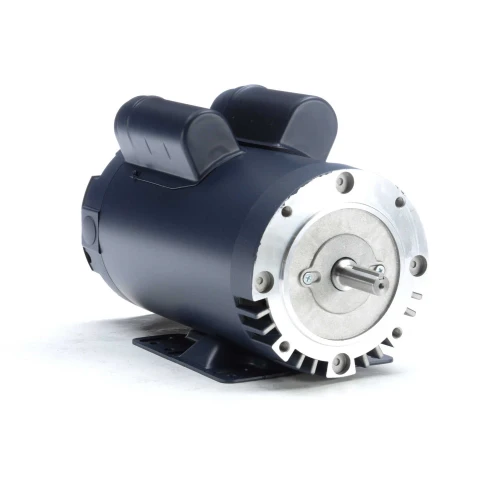

Leeson 5 HP single-phase pressure washer motor rated 230V, 60 Hz, 3450 RPM with 56HC frame and open drip-proof enclosure. Features NEMA Design B performance, double-shielded ball bearings, manual thermal protection, and rigid base mounting. UL recognized and CSA certified for continuous duty applications.
!
