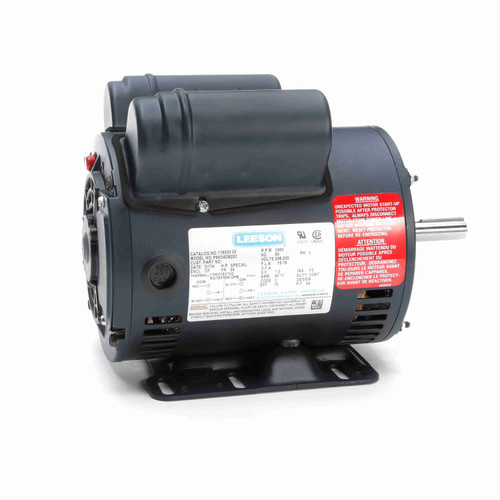

Leeson 5 HP single-phase air compressor motor rated for 230V, 3450 RPM operation. Features capacitor start/capacitor run design, NEMA 145T frame, drip-proof enclosure, and manual overload protection. Suitable for belt-driven compressor applications requiring high starting torque and continuous duty performance.
Specifications
- Product Type:
- Air Compressor Motor
- Application:
- Industrial
- System Type:
- Air Compressor
- Installation Type:
- OEM Replacement
- Voltage:
- 230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 20.8A
- Horsepower:
- 5 HP
- RPM:
- 3450 RPM
- Speeds:
- 1
- Frame Size:
- 145T Frame
- Mounting Type:
- Rigid
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Motor Type:
- Capacitor Start / Capacitor Run
- Power (kW):
- 3.7 kW
- Service Factor:
- 1.0
- KVA Code:
- E
- NEMA Design:
- L
- Power Factor:
- 95%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6205, opposite end 6203
- Overall Length:
- 13.2"
- Frame Length:
- 8"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1 Only
- IP Rating:
- IP22
- UPC:
- 691720015704
- Lifecycle Status:
- Active
