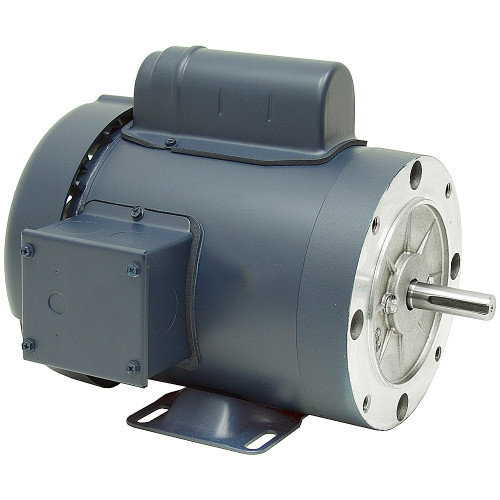

Leeson 2 HP single-phase general-purpose motor with TEFC enclosure, 1800 RPM, 56C frame, and reversible rotation. Rated 115/230V with 18.4/9.2A amperage. Features C-face mount (no base), 5/8" keyed shaft, and ball bearings. Suitable for pumps, compressors, blowers, fans, conveyors, and direct or belt-driven applications.
Specifications
- Product Type:
- General-Purpose Electric Motor
- Subcategory:
- Single-Phase AC Motor
- Application:
- Residential/Commercial
- System Type:
- Pump, Compressor, Blower, Fan, Conveyor, Machine Tool
- Installation Type:
- OEM Replacement
- Voltage:
- 115/230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 18.4/9.2 A
- Horsepower:
- 2 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Frame Size:
- 56C Frame
- Mounting Type:
- C-Face Mount
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Motor Type:
- Capacitor Start / Capacitor Run
- Power (kW):
- 1.5 kW
- Service Factor:
- 1.0
- KVA Code:
- H
- NEMA Design:
- L
- Power Factor:
- 86%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Nema 56
- Overall Length:
- 13.49"
- Frame Length:
- 8"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1 Only
- IP Rating:
- IP54
- Country of Origin:
- USA
- UPC:
- 691720010631
- Lifecycle Status:
- Active
