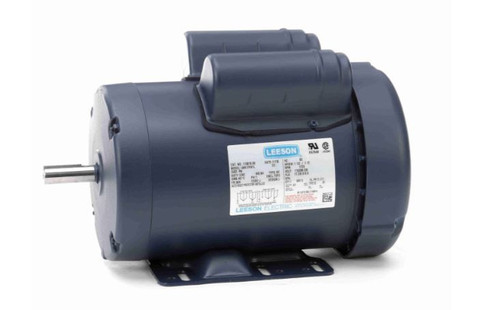

Leeson 0.75 HP single-phase auger drive motor with 48Y NEMA frame and TEFC enclosure. Operates on 115/230V at 60 Hz with capacitor start induction run design and manual thermal overload protection. Designed for direct-drive poultry and swine feed auger systems with dust-tight, fully gasketed construction and ball bearing heavy-duty industrial quality.
Specifications
- Product Type:
- Farm Duty Motor
- Subcategory:
- Auger Drive Motor
- Application:
- Residential/Commercial
- System Type:
- Agricultural Equipment
- Installation Type:
- OEM Replacement
- Voltage:
- 115/230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 10.8/5.4 A
- Horsepower:
- 0.75 HP
- RPM:
- 1725 RPM
- Speeds:
- 1
- Frame Size:
- 48Y Frame
- Mounting Type:
- Flange Mount
- Fuel Type:
- Electric
- Material:
- Rolled Steel
- Motor Type:
- Capacitor Start
- Power (kW):
- 0.56 kW
- Service Factor:
- 1.0
- KVA Code:
- K
- NEMA Design:
- N
- Power Factor:
- 64%
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Bearing Sizes:
- shaft end 6203, opposite end 6203
- Shaft Type:
- Single Special Extension
- Overall Length:
- 11.47"
- Frame Length:
- 7"
- Mounting Orientation:
- Horizontal
- Assembly Position:
- F1 Only
- IP Rating:
- IP43
- UPC:
- 691720005330
- Lifecycle Status:
- Active
