Fasco D783 is a 1/4 HP direct-drive blower and condenser fan motor rated 208-230V at 1625 RPM with a 48 Frame and 5.6" diameter. Features Permanent Split Capacitor (PSC) design, sleeve bearings, reversible rotation, and automatic thermal overload protection. Requires a separate 5 MFD 370V run capacitor.

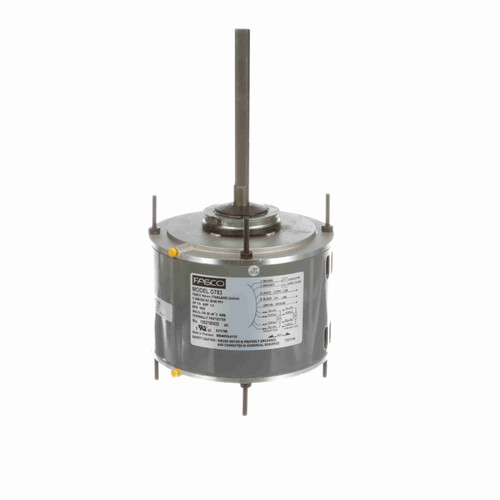

Fasco D783 1/4 HP Motor 208-230V 1625 RPM 48 Frame
Regal Rexnord - Fasco
$172.95
In Stock — 10+ available
Write a Review
Write a Review
Regal Rexnord - Fasco
Fasco D783 1/4 HP Motor 208-230V 1625 RPM 48 Frame
- SKU:
- D783
Specifications
- Product Type:
- Direct-Drive Blower Motor
- Subcategory:
- Condenser Fan / Blower
- Application:
- Residential/Commercial
- System Type:
- Split System, Package Unit, Air Handler, Furnace
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 1.5A
- Horsepower:
- 1/4 HP
- RPM:
- 1625 RPM
- Speeds:
- 1
- MFD:
- 5 MFD 370V
- Frame Size:
- 48 Frame
- Mounting Type:
- Belly Band, Stud Mount
- Fuel Type:
- Electric
- Material:
- Rolled Steel Frame
- A2L Refrigerant:
- Yes
- Motor Type:
- PSC
- Power (kW):
- 0.19 kW
- Service Factor:
- 1.0
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Run Capacitor:
- 5 MFD 370V
- Bearings:
- Sleeve / Sleeve
- Shaft Type:
- Double Flat
- Frame Length:
- 3.45"
- Country of Origin:
- Thailand
- UPC:
- 818508020198
- Lifecycle Status:
- Active
