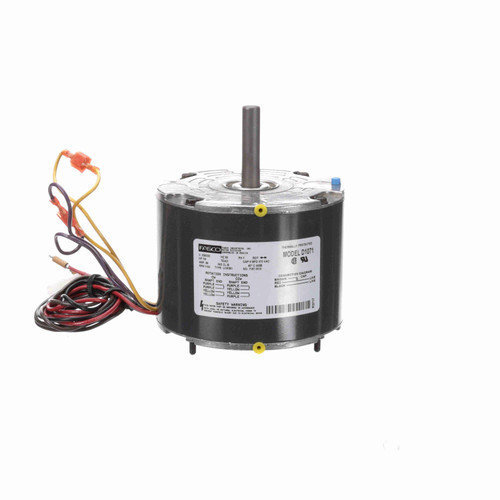

Fasco D1071 Motor 1/6 HP 208/230V 1100 RPM

Specifications

Product Type:

OEM Replacement Motor

Subcategory:

Blower Motor

Application:

Residential/Commercial

System Type:

Furnace, Air Handler, Heat Pump

Installation Type:

OEM Replacement

Voltage:

208/230V

Voltage Class:

Line Voltage

Phase:

Single Phase

Amperage:

0.99A

Horsepower:

1/6 HP

RPM:

1100 RPM

Speeds:

3

MFD:

5 MFD 370V

Frame Size:

42 Frame

Mounting Type:

Belly Band

Fuel Type:

Electric

Material:

Rolled Steel

A2L Refrigerant:

Yes

Motor Type:

PSC

Power (kW):

0.13 kW

Service Factor:

1.0

Duty:

Continuous

Ambient Temperature:

40°C

Starting Method:

Across The Line

Run Capacitor:

5 MFD 370V

Bearings:

Ball / Ball

Shaft Type:

Flat

Overall Length:

6.02"

Frame Length:

3 3/8"

Country of Origin:

Mexico

UPC:

815585027898

Lifecycle Status:

Active
