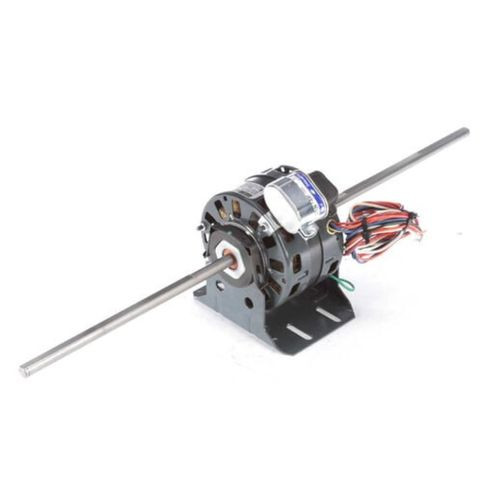

Fasco D291A 4-Speed Fan Motor 115V 1/10-1/40 HP

Regal Rexnord - Fasco

$279.95

In Stock — 10+ available

Write a Review
SKU:
D291A
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $23.80 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — request a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Fan Coil Motor
Subcategory:
Multi-Speed AC Motor
Application:
Residential/Commercial
System Type:
Fan Coil, Air Handler, Heat Pump, Split System
Installation Type:
OEM Replacement
Voltage:
115V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
2.2, 1.4, 1.0, 0.7 A
Horsepower:
1/10, 1/15, 1/25, 1/40 HP
RPM:
1050 RPM
Speeds:
4
MFD:
4 MFD 370V
Frame Size:
42 Frame
Mounting Type:
Resilient Base
Temperature Range:
40°C Ambient
Fuel Type:
Electric
Material:
Rolled Steel
A2L Refrigerant:
Yes
Motor Type:
PSC
Power (kW):
0.07 kW
Service Factor:
1.0
Duty:
Continuous
Ambient Temperature:
40°C
Starting Method:
Across The Line
Run Capacitor:
4 MFD 370V
Bearings:
Ball / Ball
Shaft Type:
Flat
Frame Length:
3.83"
Country of Origin:
Mexico
UPC:
818508029177
Lifecycle Status:
Active
FASCO fan coil and air conditioner motor with 4-speed operation for HVAC systems. 115V single-phase, 1050 RPM, 42-frame OAO design with dual shaft. Includes 4 MFD 370V capacitor. Thermally protected with ball bearings and resilient base.
