Fasco D1053 OEM replacement PSC motor for HVAC ventilation and air handling applications. 1/30 HP, 265V single-phase, 1075 RPM, open air-over enclosure with 1/2" shaft. Direct replacement for IEC D1053 systems.

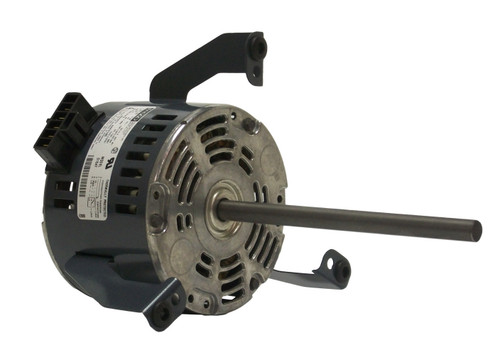

Fasco D1053 PSC Motor 1/30 HP 265V 1075 RPM
Regal Rexnord - Fasco
$219.95
In Stock — 10+ available
- SKU:
- D1053
Specifications
- Product Type:
- PSC Motor
- Subcategory:
- Ventilation/Air Handler
- Application:
- Residential/Commercial
- System Type:
- Air Handler, Ventilator, Package Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 265V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 0.38A
- Horsepower:
- 1/30 HP
- RPM:
- 1075 RPM
- Speeds:
- 3
- Fuel Type:
- Electric
- Mounting Type:
- Lug
- Frame Size:
- 42 Frame
- Motor Type:
- PSC
- Power (kW):
- 0.02 kW
- Service Factor:
- 1.0
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Run Capacitor:
- 3 MFD 370V
- Bearings:
- Sleeve / Sleeve
- Shaft Type:
- Flat
- Overall Length:
- 10.52"
- Frame Length:
- 3.33"
- Material:
- Steel
- Certifications:
- UL Recognized, CSA, A2L Compliant
- Country of Origin:
- Mexico
- UPC:
- 815585027782
- Lifecycle Status:
- Active
