DL1036 Century 1/3 hp 1075 RPM 3-Speed 48 Frame 115V Direct Drive Furnace Motor
The DL1036 is a reliable 1/3 horsepower direct drive furnace motor designed for residential HVAC applications.
Key

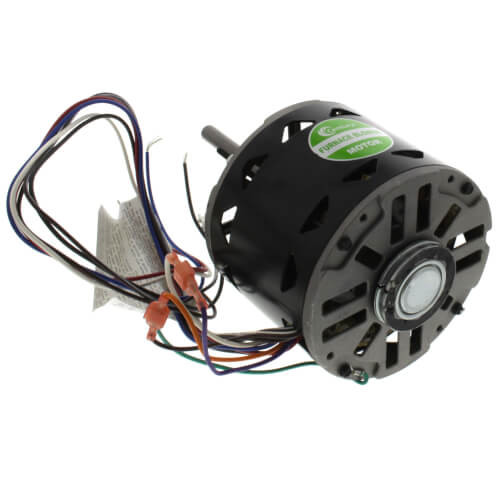

Century DL1036 PSC Motor 1/3 HP 115V 1075 RPM
Regal Rexnord - Century Motors
$114.95
In Stock — 10+ available
- SKU:
- DL1036
Specifications
- Product Type:
- Blower Motor
- Subcategory:
- Furnace/Fan Coil
- Application:
- Residential
- System Type:
- Furnace, Air Handler, Fan Coil
- Installation Type:
- OEM Replacement
- Voltage:
- 115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 5.4A
- Horsepower:
- 1/3 HP
- RPM:
- 1075 RPM
- Speeds:
- 3
- MFD:
- 7.5 MFD 370V
- Frame Size:
- 48 Frame
- Mounting Type:
- Belly Band, Stud Mount
- Temperature Range:
- 40°C Ambient
- Fuel Type:
- Electric
- Material:
- Cast Iron
- A2L Refrigerant:
- Yes
- Motor Type:
- PSC
- Power (kW):
- 0.25 kW
- Service Factor:
- 1.0
- Duty:
- Air Over
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Run Capacitor:
- 7.5 MFD 370V
- Bearings:
- Ball / Ball
- Shaft Type:
- Flat
- Overall Length:
- 9.49"
- Frame Length:
- 3 7/8"
- Mounting Orientation:
- Horizontal
- Country of Origin:
- India
- UPC:
- 786674018557
- Lifecycle Status:
- Active
