Century SN1072 is a 3/4 HP single-phase pool pump motor rated 208-230/115V, 60 Hz with 3450 RPM. Features capacitor-start induction-run design, ODP enclosure, and C-face mounting with threaded shaft. UL recognized and CSA certified for reliable pool and spa applications.

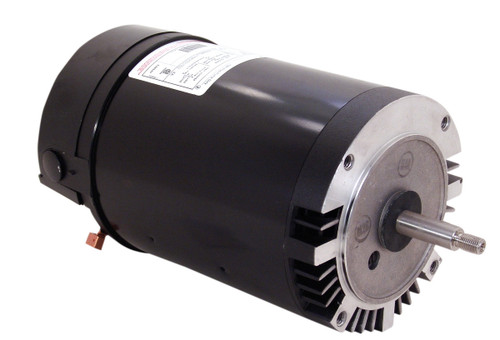

Century SN1072 Pool Pump Motor 3/4 HP 208-230/115V
Regal Rexnord - Century Motors
$436.95
In Stock
Write a Review
Write a Review
Regal Rexnord - Century Motors
Century SN1072 Pool Pump Motor 3/4 HP 208-230/115V
- SKU:
- SN1072
Specifications
- Product Type:
- Pool Pump Motor
- Subcategory:
- Single-Phase AC Motor
- Application:
- Residential
- System Type:
- Pool Pump, Spa Pump
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 6.0-5.5/11.0 A
- Horsepower:
- 3/4 HP
- RPM:
- 3450 RPM
- Speeds:
- 1
- Frame Size:
- 56J Frame
- Mounting Type:
- C-Face
- Motor Type:
- Capacitor Start
- Power (kW):
- 0.56 kW
- Service Factor:
- 1.85
- Duty:
- Continuous
- Ambient Temperature:
- 50°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Shaft Type:
- 7/16 Thread
- Overall Length:
- 13.1"
- Frame Length:
- 7"
- Mounting Orientation:
- Horizontal
- Fuel Type:
- Electric
- Inlet Size:
- 1/2-14 NPT
- Connection Type:
- NPT
- Material:
- Rolled Steel
- Country of Origin:
- Mexico
- UPC:
- 786674031044
