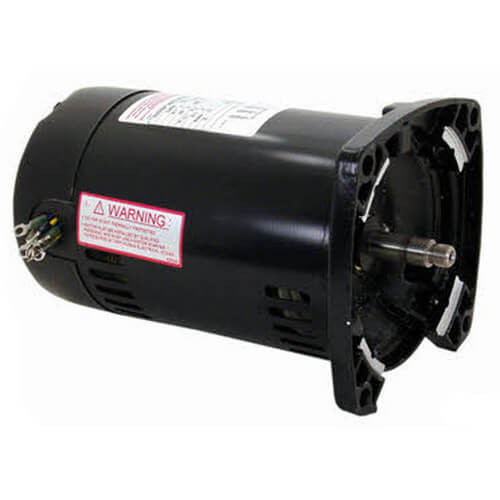

Century Q3152 Pool Pump Motor 1.5 HP 3-Phase 208-230/460V
Regal Rexnord - Century Motors
$468.95
In Stock — 10+ available
- SKU:
- Q3152
Specifications
- Product Type:
- Pool Pump Motor
- Subcategory:
- Three-Phase Pump Motor
- Application:
- Residential/Commercial
- System Type:
- Pool and Spa Pump
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Three Phase
- Amperage:
- 6.8/3.4 A
- Horsepower:
- 1.5 HP
- RPM:
- 3450 RPM
- Speeds:
- 1
- Frame Size:
- 48Y Frame
- Mounting Type:
- Square Flange
- Temperature Range:
- 50°C Ambient
- Fuel Type:
- Electric
- Connection Type:
- Threaded Shaft
- Material:
- Copper Windings, Stainless Steel Shaft
- Motor Type:
- Three Phase
- Power (kW):
- 1.1 kW
- Service Factor:
- 1.47
- Duty:
- Continuous
- Ambient Temperature:
- 50°C
- Bearings:
- Ball / Ball
- Shaft Type:
- 1/2 Threaded
- Overall Length:
- 12.57"
- Frame Length:
- 8 11/16"
- Mounting Orientation:
- Horizontal
- Certifications:
- CSA
- Country of Origin:
- Mexico
- UPC:
- 786674029287
- Lifecycle Status:
- Active
Century 1.5 HP three-phase pool pump motor with 3450 RPM, 48Y frame, and open drip-proof enclosure. Features all-copper windings, 303 stainless steel shaft, sealed ball bearings, and square flange for jet pump applications. Rated 208-230/460V, 60 Hz, continuous duty with 1.47 service factor.
