Century FB1076V1 condenser fan motor for residential and commercial HVAC systems. 3/4 HP, single-phase, 1075 RPM, 48 frame with semi-enclosed enclosure and resilient base mount. Operates on 208-230/460V with permanent split capacitor design (17.5 MFD 370V capacitor included). Thermally protected with ball bearings and 1/2" shaft.
Century Motors FB1076V1 Condenser Fan Motor 3/4 HP 208-230/460V
Regal Rexnord - Century Motors
$391.95
In Stock — 10+ available
Write a Review
Write a Review
Regal Rexnord - Century Motors
Century Motors FB1076V1 Condenser Fan Motor 3/4 HP 208-230/460V
- SKU:
- FB1076V1
Specifications
- Product Type:
- Condenser Fan Motor
- Subcategory:
- Single-Phase AC Motor
- Application:
- Residential/Commercial
- System Type:
- Split System, Package Unit, Air Conditioner
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 5.0/2.5 A
- Horsepower:
- 3/4 HP
- RPM:
- 1075 RPM
- Speeds:
- 1
- MFD:
- 17.5 MFD 370V
- Frame Size:
- 48Y Frame
- Mounting Type:
- Resilient Base
- Fuel Type:
- Electric
- Connection Type:
- Conduit Box
- Material:
- Rolled Steel
- A2L Refrigerant:
- Yes
- Motor Type:
- PSC
- Power (kW):
- 0.56 kW
- Service Factor:
- 1.0
- Duty:
- Air Over
- Ambient Temperature:
- 60°C
- Starting Method:
- Across The Line
- Run Capacitor:
- 17.5 MFD 370V
- Bearings:
- Ball / Ball
- Shaft Type:
- Flat
- Overall Length:
- 13.74"
- Frame Length:
- 7 1/8"
- Mounting Orientation:
- Horizontal
- Country of Origin:
- Mexico
- UPC:
- 786674020277
- Lifecycle Status:
- Active
Add to Cart
The item has been added
Regal Rexnord - Century Motors
FB1076
Century FB1076 Condenser Fan Motor 3/4 HP 208-230/460V
$551.95
Add to Cart
The item has been added
Regal Rexnord - Century Motors
H1052RBV1
Century H1052RBV1 Condenser Fan Motor 2 HP 208-230/460V
$512.95
Add to Cart
The item has been added
Regal Rexnord - Century Motors
H1053AV1

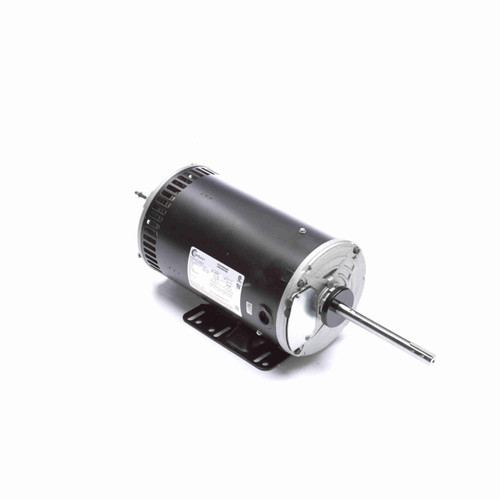

Century H1053AV1 Condenser Fan Motor 1 HP 208-230/460V
