Century 0.75 HP condenser fan motor for HVAC systems. Single-phase, open drip-proof (ODP) enclosure, 1100 RPM. Dual-voltage 208-230/460V rated.

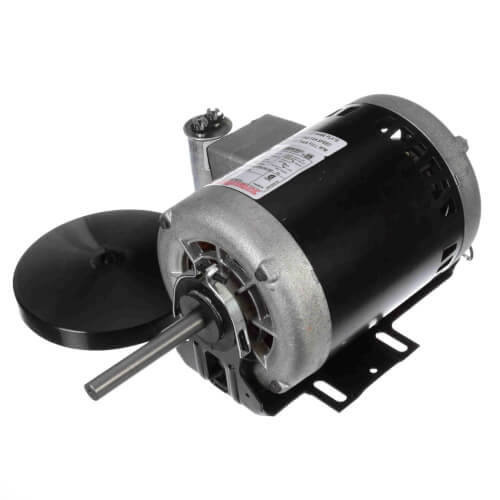

Century C663 Condenser Fan Motor 0.75 HP 208-230/460V
Regal Rexnord - Century Motors
$653.95
In Stock — 10+ available
- SKU:
- C663
Specifications
- Product Type:
- Condenser Fan Motor
- Subcategory:
- Direct Drive
- Application:
- Residential/Commercial
- System Type:
- Split System, Package Unit, Rooftop Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/460V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 0.75 HP
- RPM:
- 1100 RPM
- Speeds:
- 1
- Mounting Type:
- Direct Drive
- Fuel Type:
- Electric
- Frame Size:
- 56Z Frame
- Motor Type:
- PSC
- Power (kW):
- 0.56 kW
- Service Factor:
- 1.0
- Duty:
- Continuous
- Ambient Temperature:
- 40°C
- Starting Method:
- Across The Line
- Bearings:
- Ball / Ball
- Shaft Type:
- Flat
- Overall Length:
- 14.41"
- Frame Length:
- 6 1/4"
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA
- UPC:
- 786674016546
- Lifecycle Status:
- Active
