Century B796 is a 1.5 HP PSC pool and spa motor with dual-voltage capability (208-230V/115V single-phase). Features ODP enclosure, 56J frame, and round mounting for direct replacement in pool pump and spa equipment. Rolled steel construction with CCWSE rotation.

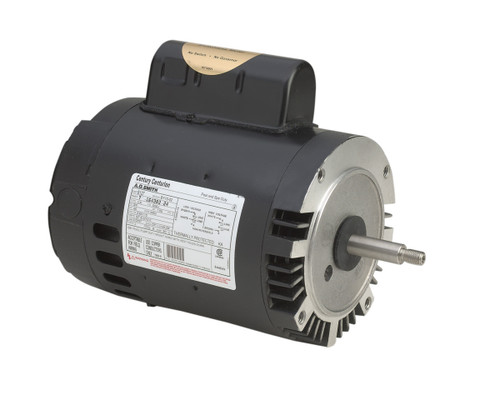

Century B796 Pool and Spa Motor 1.5 HP 208-230/115V
Regal Rexnord - Century Motors
$461.95
In Stock — 10+ available
Write a Review
Write a Review
Regal Rexnord - Century Motors
Century B796 Pool and Spa Motor 1.5 HP 208-230/115V
- SKU:
- B796
Specifications
- Product Type:
- Pool and Spa Motor
- Subcategory:
- PSC Motor
- Application:
- Residential
- System Type:
- Pool Pump, Spa Equipment
- Installation Type:
- OEM Replacement
- Voltage:
- 208-230/115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Amperage:
- 8.7-7.8/15.6 A
- Horsepower:
- 1.5 HP
- RPM:
- 3450 RPM
- Speeds:
- 1
- Frame Size:
- 56J Frame
- Mounting Type:
- Round
- Motor Type:
- PSC
- Power (kW):
- 1.1 kW
- Service Factor:
- 1.3
- Duty:
- Continuous
- Ambient Temperature:
- 50°C
- Bearings:
- Ball / Ball
- Shaft Type:
- 7/16 Threaded
- Overall Length:
- 13.55"
- Frame Length:
- 8"
- Mounting Orientation:
- Horizontal
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA
- Country of Origin:
- Mexico
- UPC:
- 786674013071
