Century 732A unit heater motor delivers 1/3 HP at 1140 RPM for heating and ventilation applications. Single-phase, TEAO enclosure rated for 115/208-230V operation.

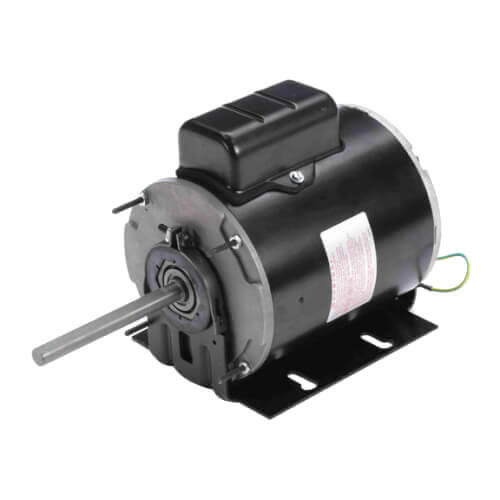

Century 732A Unit Heater Motor 1/3 HP 115/208-230V
Regal Rexnord - Century Motors
$395.95
In Stock — 10+ available
- SKU:
- 732A
Specifications
- Product Type:
- Unit Heater Motor
- Application:
- Residential/Commercial
- System Type:
- Unit Heater, Heating Ventilating Unit
- Installation Type:
- OEM Replacement
- Voltage:
- 115/208-230V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 1/3 HP
- RPM:
- 1140 RPM
- Speeds:
- 1
- Mounting Type:
- Resilient Base
- Frame Size:
- 48Y Frame
- Motor Type:
- PSC
- Power (kW):
- 0.25 kW
- Service Factor:
- 1.0
- Duty:
- Air Over
- Ambient Temperature:
- 60°C
- Starting Method:
- Across The Line
- Run Capacitor:
- 5 MFD 370V
- Bearings:
- Ball / Ball
- Shaft Type:
- Flat
- Overall Length:
- 12.21"
- Frame Length:
- 5 7/8"
- Mounting Orientation:
- Any
- Assembly Position:
- Any
- Material:
- Rolled Steel
- Certifications:
- UL Recognized, CSA, A2L Compliant
- UPC:
- 786674010612
- Lifecycle Status:
- Active
