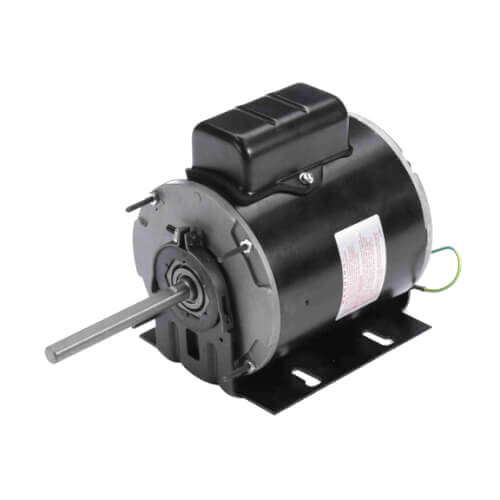

Century 731A Unit Heater Motor 1/4 HP 115/208-230V

Regal Rexnord - Century Motors

$373.95

In Stock — 10+ available

Write a Review
SKU:
731A
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Shipping: $27.25 per item. The same price to anywhere in the 50 states.

Buying several? Shipping is charged per item — email quotes@globalpartsupply.com for a combined quote.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Specifications

Product Type:
Unit Heater Motor
Application:
Residential/Commercial
System Type:
Unit Heater, Air Handler, Fan Coil
Installation Type:
OEM Replacement
Voltage:
115/208-230V
Voltage Class:
Line Voltage
Phase:
Single Phase
Amperage:
3.1/1.6 A
Horsepower:
1/4 HP
RPM:
1140 RPM
Speeds:
1
MFD:
4 MFD 370V
Frame Size:
48Y Frame
Mounting Type:
Resilient Base
Fuel Type:
Electric
A2L Refrigerant:
Yes
Motor Type:
PSC
Power (kW):
0.19 kW
Service Factor:
1.0
Duty:
Air Over
Ambient Temperature:
60°C
Starting Method:
Across The Line
Run Capacitor:
4 MFD 370V
Bearings:
Ball / Ball
Shaft Type:
Flat
Overall Length:
11.83"
Frame Length:
5 1/2"
Mounting Orientation:
Any
Assembly Position:
Any
Material:
Rolled Steel
Country of Origin:
India
UPC:
786674010605
Lifecycle Status:
Active
Century 1/4 HP unit heater motor with permanent split capacitor (PSC) design, rated 115/208-230V single-phase at 1140 RPM. Features 48 Frame TEAO enclosure, automatic thermal protection, and includes 4 MFD 370V capacitor. Ball bearing construction with 1/2" shaft diameter and resilient base mounting.
