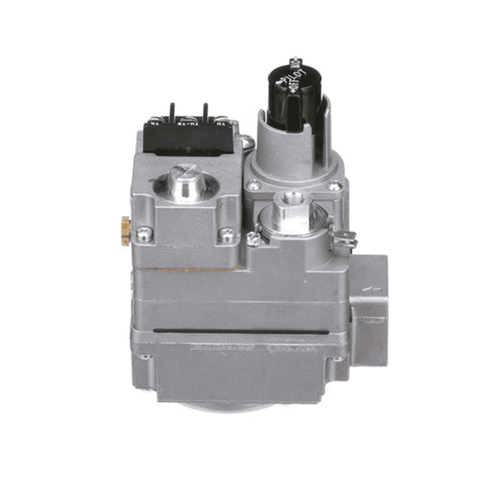

White Rodgers 36C03-300 Combination Gas Valve 24V 1/2"x3/4

White Rodgers 36C03-300 Combination Gas Valve 24V 1/2"x3/4

Copeland Comfort Control (White Rodgers)

$132.95

In Stock — 10+ available

Write a Review
SKU:
36C03-300
Adding to cart… The item has been added

30-day returns on most unused, uninstalled parts Secure checkout with cards, PayPal or Google Pay Questions? quotes@globalpartsupply.com

Flat-rate shipping. The same price to anywhere in the 50 states.

Ships same or next business day · UPS Ground or comparable carrier, typically 1–5 business days.

Shipping details

Specifications

Product Type:
Combination Gas Valve
Subcategory:
Combination Gas Valve
Application:
Residential
System Type:
Furnace
Installation Type:
OEM Replacement
Voltage:
24V AC
Voltage Class:
Low Voltage
Amperage:
0.23 A
Mounting Type:
Upright or 0° to 90° from upright in any direction
Temperature Range:
-40°F to 175°F
Pressure Rating:
1/2 PSI (14.0" WC)
Fuel Type:
Natural Gas
Inlet Size:
1/2" NPT
Connection Type:
NPT
Connection / Joint:
NPT
BTU Input:
230,000 BTU/hr
White-Rodgers 36C03-300 is a 24V standing pilot combination gas valve designed for natural gas furnace systems. Features 1/2" inlet x 3/4" outlet, 230,000 BTU/hr capacity at 1" pressure drop, adjustable pressure regulator (2.5–5.0" WC natural gas), and fast-opening characteristics. Includes inlet/outlet screens, line interrupter, and pressure taps.
!
