The US Motors NAL1036 is a 1/3 HP general-purpose motor designed for HVAC and light commercial applications. Operating at 115V single-phase, 1075 RPM with a 48Y frame and open drip-proof (ODP) enclosure, it is ideal for furnace blowers, fan coil units, condenser fans, and air handlers. Built to US Motors quality standards for reliable, long-service performance.

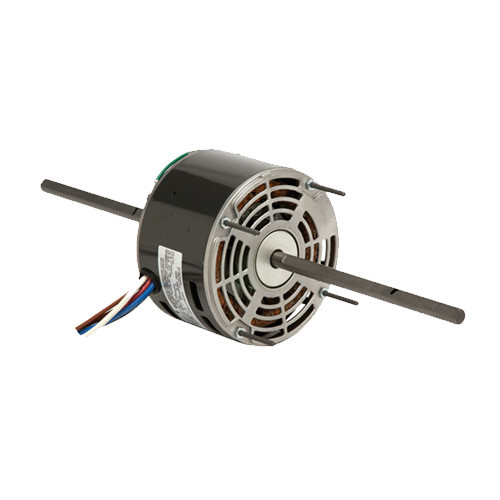

US Motors NAL1036 1/3 HP Motor 115V 1075 RPM 48Y ODP
Nidec-US Motors
$238.95
In Stock
Write a Review
Write a Review
Nidec-US Motors
US Motors NAL1036 1/3 HP Motor 115V 1075 RPM 48Y ODP
- SKU:
- NAL1036
Specifications
- Product Type:
- General Purpose Motor
- Subcategory:
- HVAC Blower Motor
- Application:
- Residential/Commercial
- System Type:
- Furnace, Air Handler, Fan Coil, Condenser Fan
- Installation Type:
- OEM Replacement
- Voltage:
- 115V
- Voltage Class:
- Line Voltage
- Phase:
- Single Phase
- Horsepower:
- 1/3 HP
- RPM:
- 1075 RPM
- Speeds:
- 3
- Frame Size:
- 48Y Frame
- Motor Type:
- PSC
- Power (kW):
- 0.3 kW
- Service Factor:
- 1.0
- Service Factor Amps:
- 7.15A
- Locked Rotor Torque:
- 7.135 oz-ft
- Breakdown Torque:
- 54.68 oz-ft
- Ambient Temperature:
- 40°C
- Bearings:
- Ball / Ball
